DIODE TEST
1.
2.
3.
4.
5.

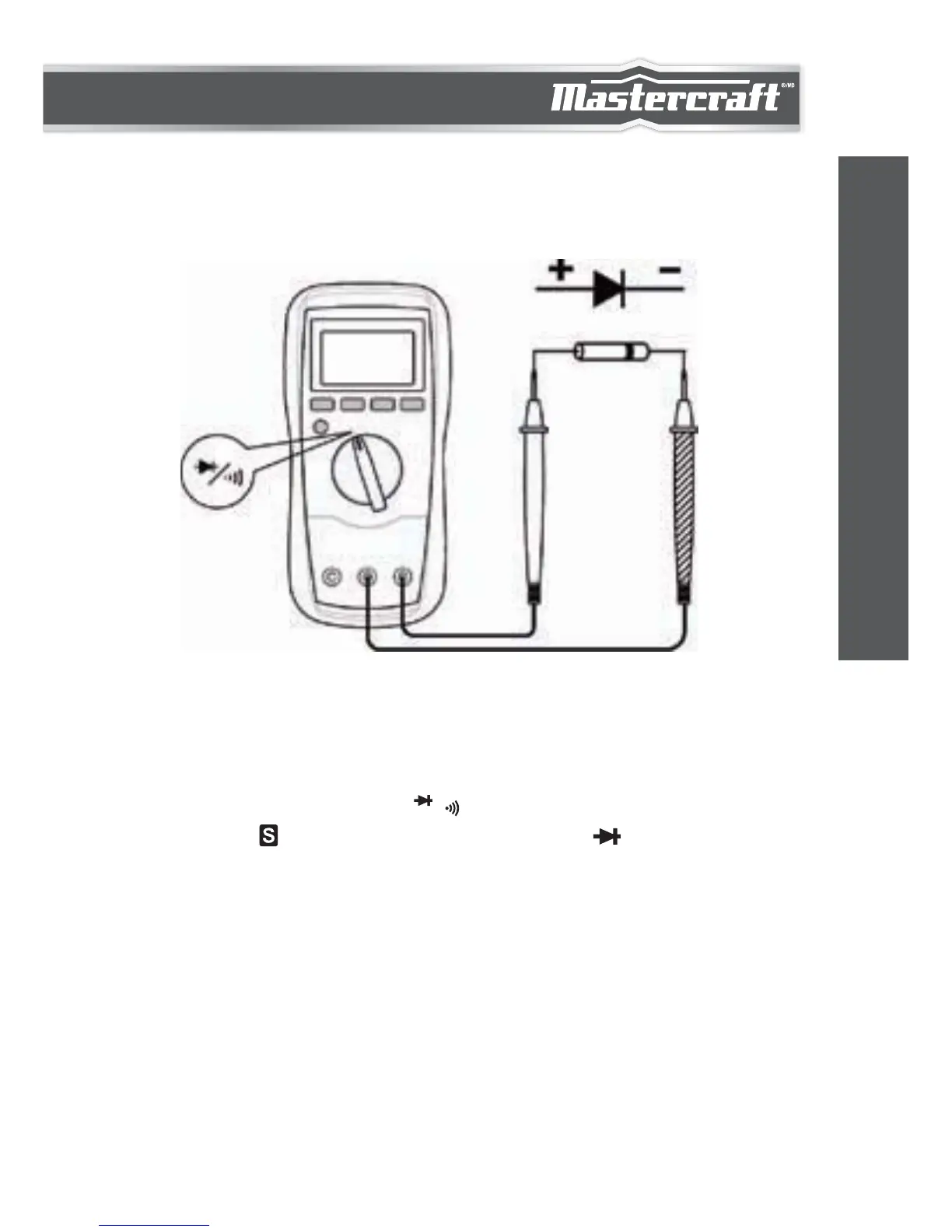

Connect the black test lead to the "COM" terminal and the red
test lead to the "INPUT" terminal. (Note: The polarity of the red
lead is positive " + " .)
Set the function switch to / position.
Press the button until the display shows " ".
Connect the red test lead to the anode of the diode to be tested
and the black test lead to the cathode of the diode.
The display shows the approximate forward voltage drop of the
diode. If the connection is reversed, "OL" will be shown on the
display.
26
OPERATING INSTRUCTIONS
