V. Assembly and adjustments(continued)
19

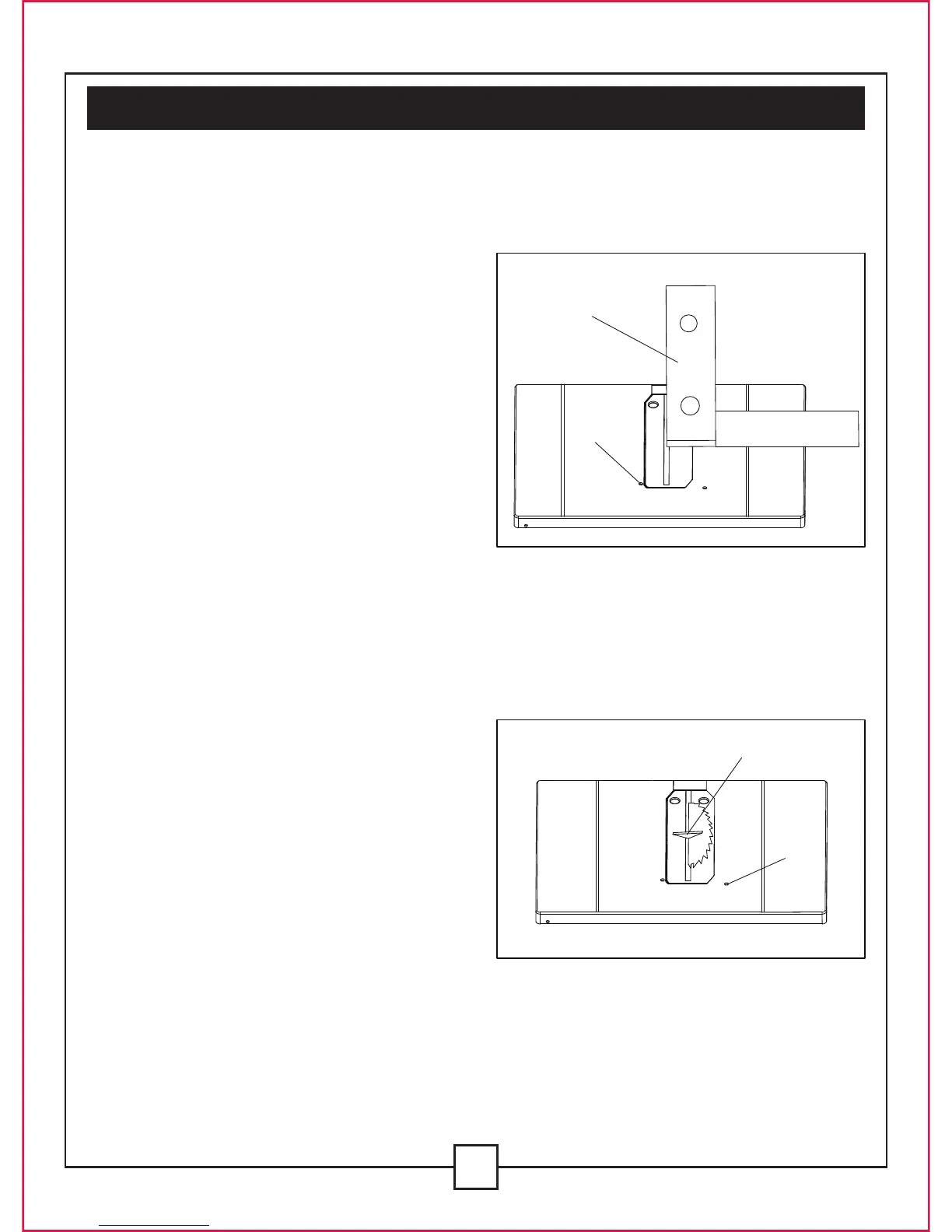

ADJUSTING THE 90° AND 45°
POSITIVE STOPS (FIG. 19, 20)
This saw has positive stops that will quickly position the saw blade at 90° to the table.
Make adjustments only if necessary.
90°Stop (FIG. 19)
1. Raise the blade to the maximum height by
turning the control handle counter-clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 90° (0°) bevel.
4. Using a square (1), verify that the blade is
at a 90° (0°) angle to the table top.
5. If blade is not at a 90° (0°) angle to the
table, back off the adjustment screw (2).
6. Loosen the bevel locking knob and square
the blade 90° (0°) to the table.
7. Once the blade is at a 90° (0°) angle to the
table top, tighten the bevel angle locking
knob.
8. Carefully tighten the adjusting screw (2)
until it touches the bevel stop.
DO NOT OVERTIGHTEN.
9. Verify that the blade is still aligned at 90° (0°).
45°Stop
45° BEVEL STOP (FIG. 20)
1. Raise the blade to the maximum height by
turning the control handle counter-clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 45° bevel.
4. Using a square (1), verify that the blade is
at a 45° angle to the table top.
5. If blade is not at a 45° angle to the table,
back off the adjustment screw (2).
6. Loosen the bevel locking knob and set the
blade at a 45° angle to the table.
7. Once the blade is at a 45° angle to the table top, tighten the bevel angle locking knob.
8. Carefully tighten the adjusting screw (2) until it touches the bevel stop.
DO NOT OVERTIGHTEN.
9. Verify that the blade is still aligned at 45°.
Fig. 19
Fig. 20
1
2
1
2
