Video Display Gauge
(Standard on MariStar 230,
MariStar 280, X-Star, X-2, X-14,
X-15, X-30, X-45, and X-80;
Optional on ProStar 214,
MariStar 200, 215 and 245)
Many MasterCraft boats feature a color
display gauge. The video display gauge is
capable of displaying engine, boat, and Per-
fect Pass speed control information.
NOTE: At press time for this Own-
ers Manual, additional functionality
was being added to the Video Display
Gauge. All of the functions listed herein will be available. Addi-
tional items will be described by the brief manual provided by
the manufacturer.
Information is divided into manageable
pages or screens and organized into a straight-
forward menu structure for presentation to
the driver. Display controls, conveniently locat-
ed along the bottom of the gauge, allow rapid
navigation of the menu structure to display any
desired information.

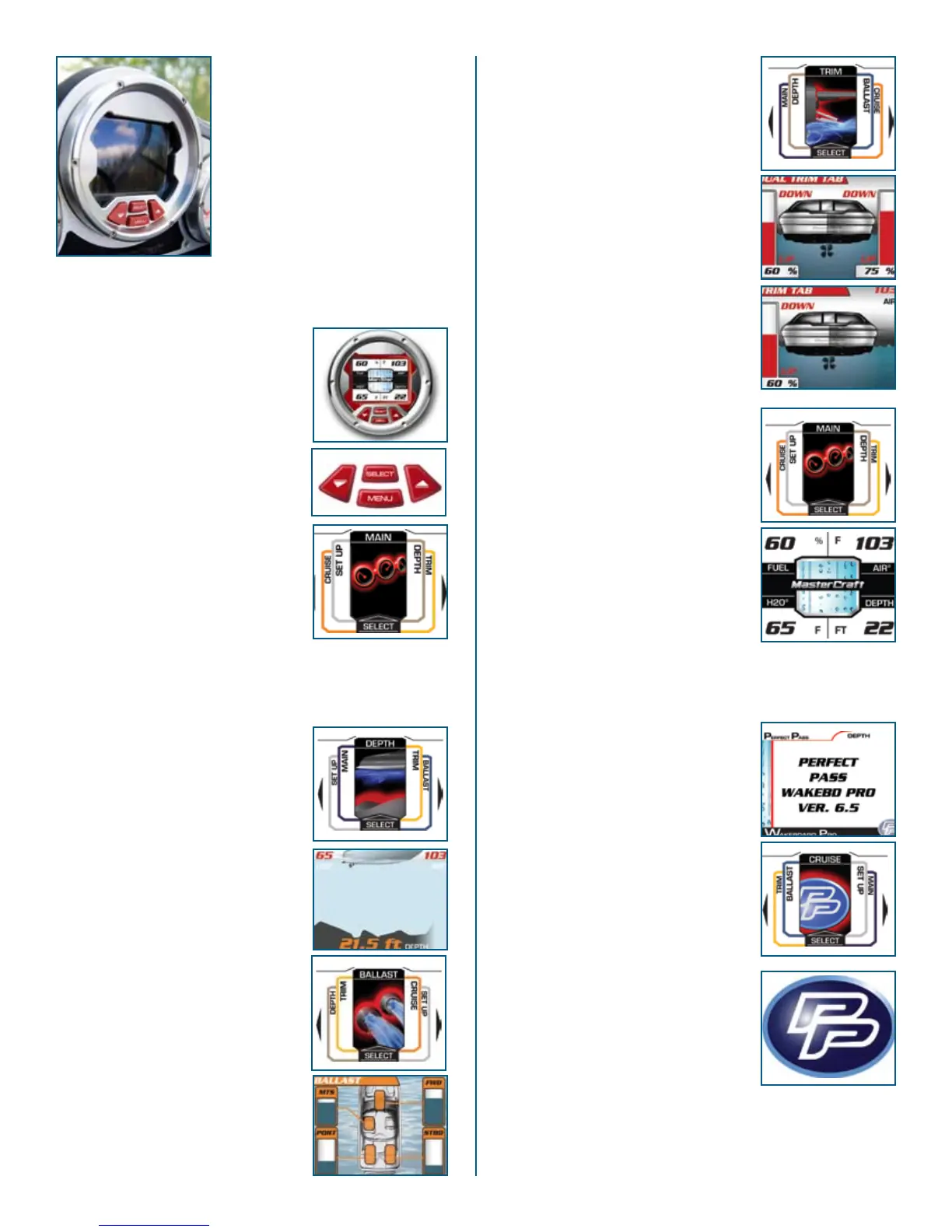

Display navigation is intuitive. Pressing
the MENU button brings up a display of the
available information organized and illustrat-
edasletabswitheachtabrepresentinga
screen of information. Repeatedly pressing
the MENUbuttonshufesthetabstobring
a new tab to the top of the stack. Pressing
the SELECT button initiates the screen rep-
resented by the tab on the top of the stack.
The system anticipates the need to dis-
play information and automatically brings up
certain screens when they are necessary.
For example, the system automatically dis-
plays a related screen when it senses any of the following events:
• Adjusting the trim brings up the Trim screen
• Adjusting the ballast brings up the Ballast screen
• Pushing the Perfect Pass button brings up
the Perfect Pass screen
• Any alarm condition brings up a warning
screen.
Selecting the DEPTH tab goes to the
screen illustrated. This screen digitally dis-
plays depth, water temperature, air tem-
perature, and illustrates the depth trend.
The system also has a user adjustable depth
alarm that can be adjusted from the SET-
UP tab.
Selecting the BALLAST tab goes to
the screen illustrated below. It allows the
driver to see the status of all the ballast
tanks installed in the boat. This tab is a plug
and play tab so uninstalled ballast tanks do
not appear on the screen.
Selecting the
TRIM tab goes to one of
the screens illustrated below. These screens
display the position of the installed single-
trim tab or dual-trim tabs.
Selecting the
MAIN tab goes to the
screen illustrated in the next column. Any
information available to the instrumenta
-
tion system may be selected by the driver
to be displayed in this screen. This screen is
organized into four (4) quadrants with the
user-selected information digitally displayed
in each quadrant.
To change the information displayed
simply:
• Press the
UP or DOWN arrows to
highlight the quadrant that you wish to
change
• Press SELECT to access the pull-down
menu
• Using the
UP or DOWN arrows highlight the desired informa-
tion.
• Press SELECT again to store the change
MasterCraft boats equipped with the
video display gauge feature integrated Per-
fect Pass Wakeboard Pro speed control soft-
ware.
The Perfect Pass application can be en-
tered by selecting the CRUISE tab on the
MENU screen or pressing the remote Per-
fect Pass button.
Perfect Pass is turned on and off by
pressing the remote perfect pass button.
Please refer to the Perfect Pass manual for
detailed operating instructions.
