26
model no. 055-6768-8 | contact us 1-800-689-9928
ASSEMBLY
MOUNTING THE MITRE SAW (Fig. 11, 12)
Mounting instructions:
• For stationary use, place the saw in the
desired location, directly on a workbench
where there is room for handling and
proper support of the workpiece. The base
of the saw has eight mounting holes, four
1/4" holes and four 3/8" holes. Select the
proper mounting holes based on the size of
bolts used. Bolt the base of the mitre saw (1)
to the workbench (5), using the fastening
method shown in Fig 11.
NOTE: Mounting hardware is not included with
this tool. Bolts, nuts, washers, and screws must
be purchased separately.

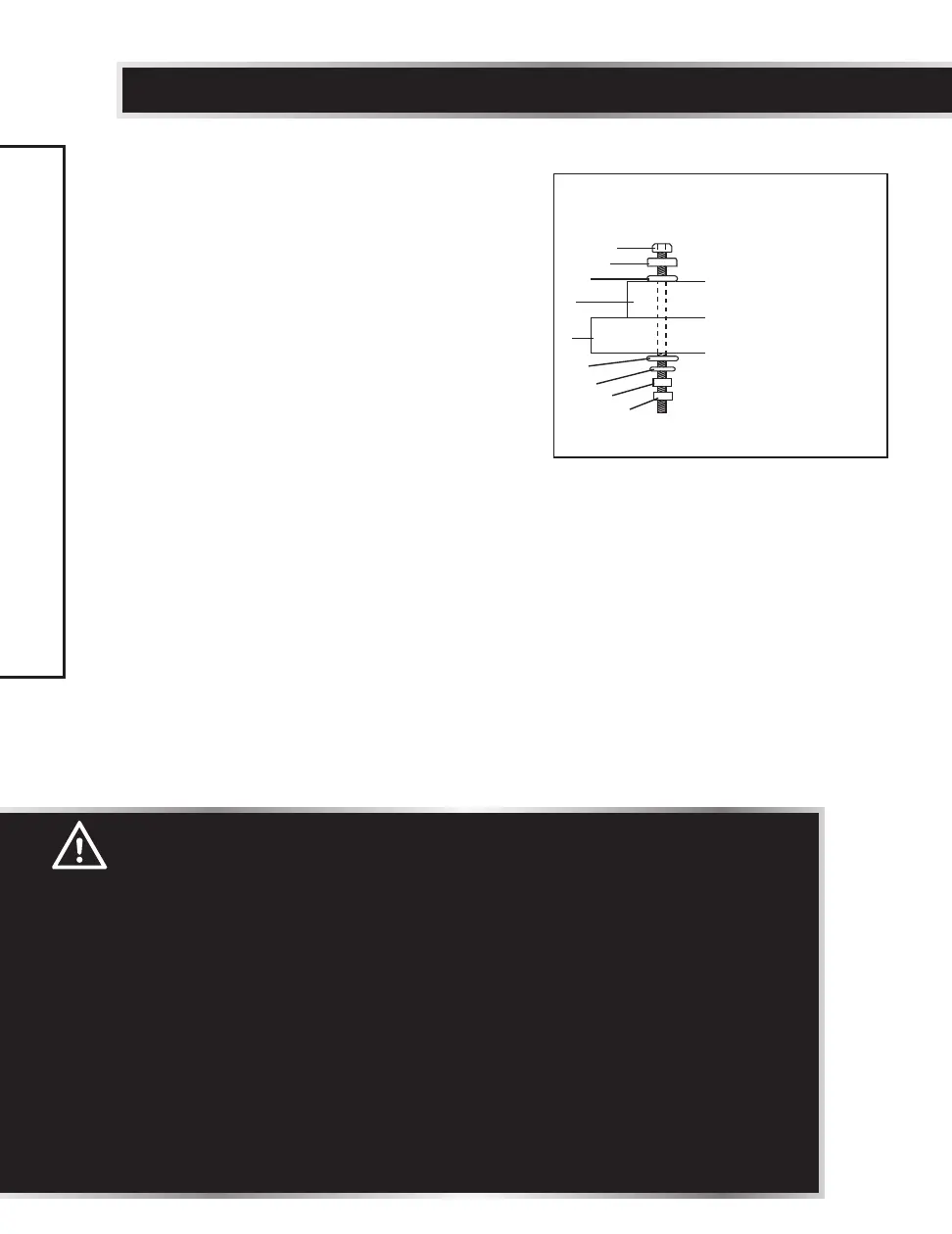

Fig. 11
1. Mitre saw base
2. Hex head bolt
3. Rubber washer
4. Flat washer
5. Workbench
6. Flat washer
7. Lockwasher
8. Hex nut
9. Jam nut
1
2
3
4
5
6
7
8
9
WARNING:
To avoid injury from unexpected saw movement:
• Before moving the saw, disconnect the power cord from the outlet, and
lock the cutting arm in the lower position using the head hold-down
latch.
NOTE: The head hold-down latch is for carrying or storing the tool. It is
not to be used for holding the saw while cutting. Lower blade and press
in head hold-down latch to secure saw for transport or storage.
• Never carry the mitre saw by the power cord or by the trigger switch
handle. Carrying the tool by the power cord could cause damage to the
insulation or wire connections resulting in electric shock or fire.
• To avoid injury from flying debris, do not allow visitors to stand behind
the saw.
• Place the saw on a firm, level workbench where there is room for
handling and properly supporting the workpiece.
• Support the saw on a level work surface.
•
Bolt or clamp the saw to its support.
