Masterflex L/S Series - Maintenance; Replacement Parts

Maintenance is limited to replacement of the parts listed in the
replacement parts list and cleaning the Pump Head.
Section 3 Maintenance
Ref Description Part No.
** Replacement Hardware Kit 77252-01
** Replacement Occlusion Kit 77252-65
A Replacement Door Kit 77252-68
** Replacement Rotor THN Kit (For 77252-x0) 77252-66
B Replacement Rotor THK Kit (For 77252-x2) 77252-67
C Replacement Open Head Sensor Kit 77252-90
D
Replacement THN Retainer & Spring Kit (For 77252-x0) 77252-63
** Replacement THK Retainer & Spring Kit (For 77252-x2) 77252-64
** Optional Leak Detector Kit 77252-92
** (Not Shown)
Replacement Parts

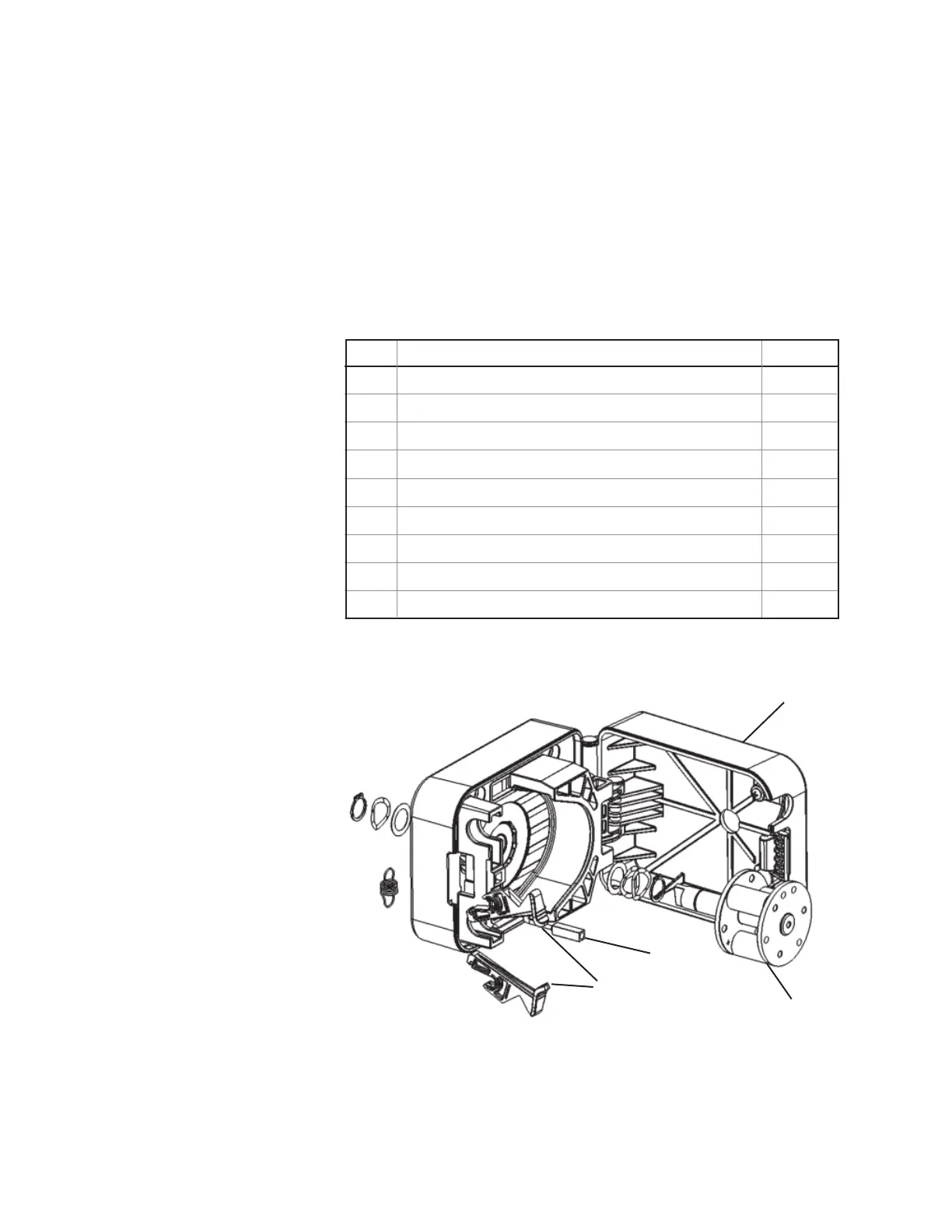

Figure 3-1. Exploded View of Pump
A
B
C
D
Masterflex 3-1MASTERFLEX L/S High-Performance Pump Head Operating Manual
