Pumps accept only MASTERFLEX L/S® Precision tubing sizes L/S 16,
L/S 25, L/S 17 and L/S 18 or L/S High-Performance tubing sizes L/S
14HP, L/S 15, L/S 15HP, L/S 16HP, L/S 24, L/S 24HP, L/S 35 and L/S
36. Use only MASTERFLEX tubing that is surface-printed with the tubing
designation.
WARNING: Turn off drive before removing or installing tubing.
Fingers or loose clothing could be caught in the rollers.
1. Lift Door Latch to open, Figure 2-2, Occlusion bed will retract as the
door is opened.
Section 2
Setup and Operation

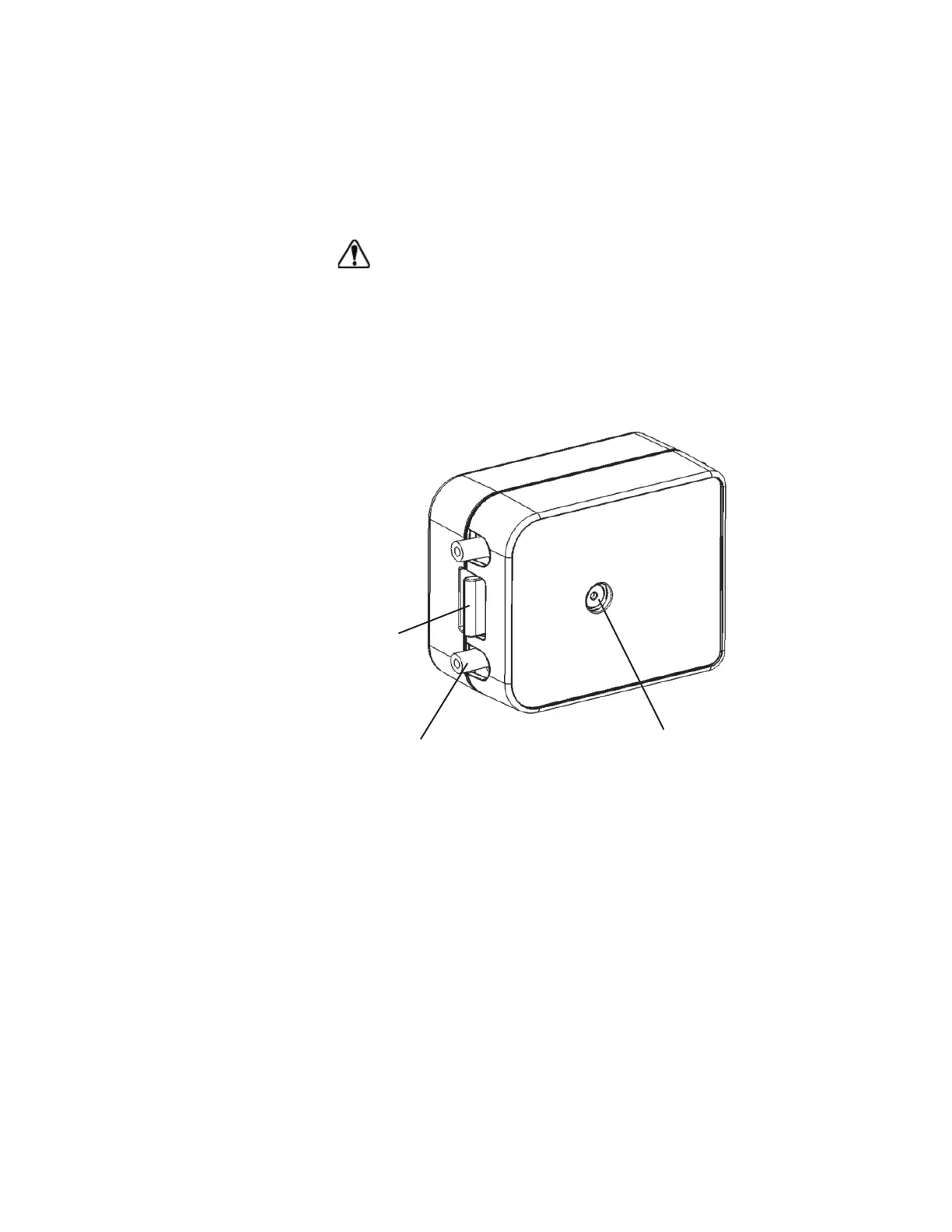

Figure 2-2. MASTERFLEX L/S High-Performance Pump Head
Selecting Tubing
Loading Tubing
Tachometer Opening
Tubing
Door Latch
Masterflex
2-2 MASTERFLEX L/S High-Performance Pump Head Operating Manual
