2. Depress tubing retainer (Figure 2-3) and insert tubing. Tubing will be
held in place by retainer spring.
3. Insert the MASTERFLEX tubing inside tubing guide and around
rotor, depress tubing retainer and insert tubing. Pull tubing snug
against roller with the ends of the tubing extending out of the tubing
entrance and tubing exit as shown in Figure 2-3 and release tubing
retainer. Tubing should be centered on roller.
4. Ensure tubing is correctly loaded and close door until the latch is
snapped closed. Lightly pull one end of tubing to remove any slack.
Proceed to pump operation.
1. Connect pump tubing to desired fluid source and destination.
2. Start pump drive and set desired speed.
Section 2
Setup and Operation
Loading Tubing
(continued)
Operation

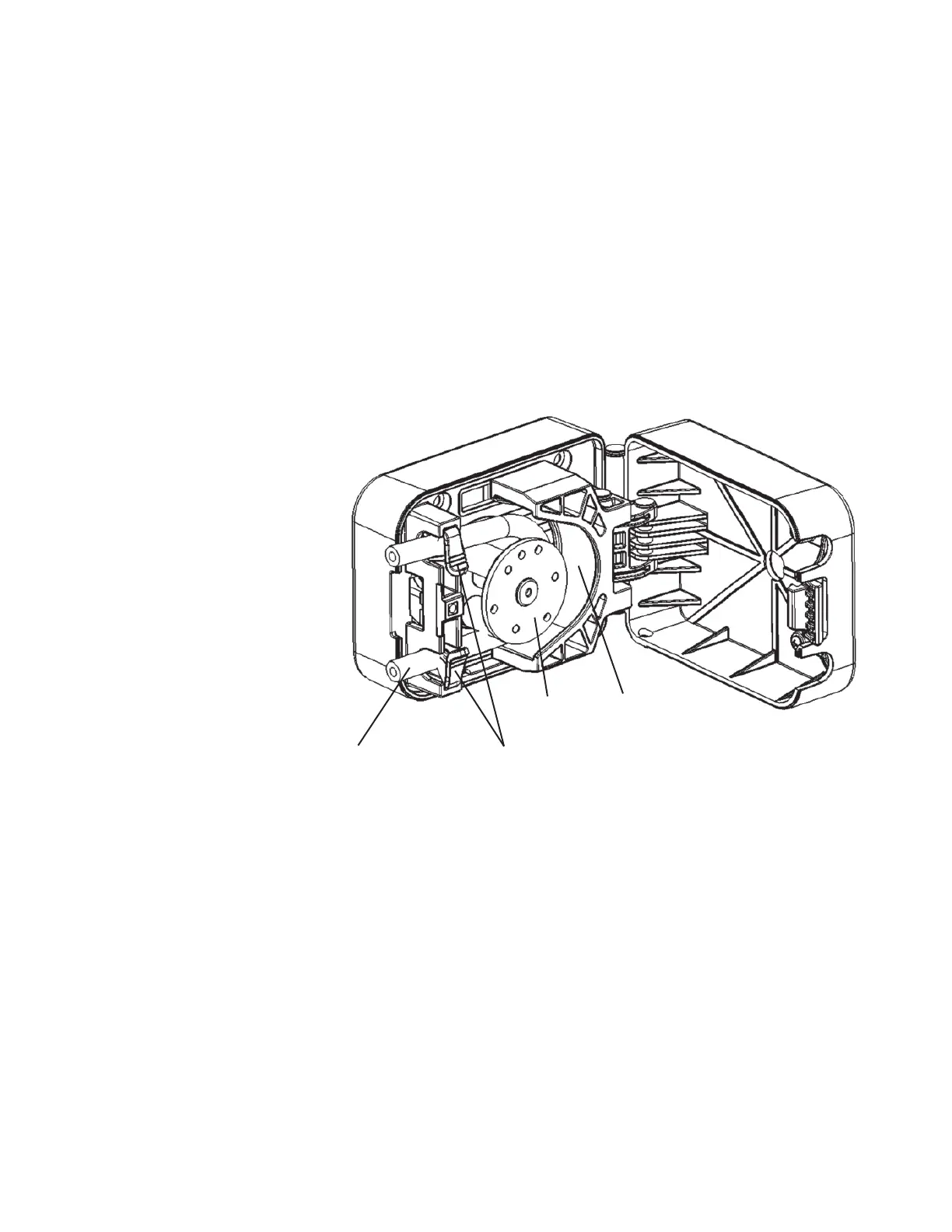

Figure 2-3. Loading Tubing
Rotor
Occusion Bed
Tubing
Spring-Loaded Tubing Retainers
Masterflex 2-3MASTERFLEX L/S High-Performance Pump Head Operating Manual
