Mastervolt Chargemaster 12/70-3

T
ECHNICAL DATA
33

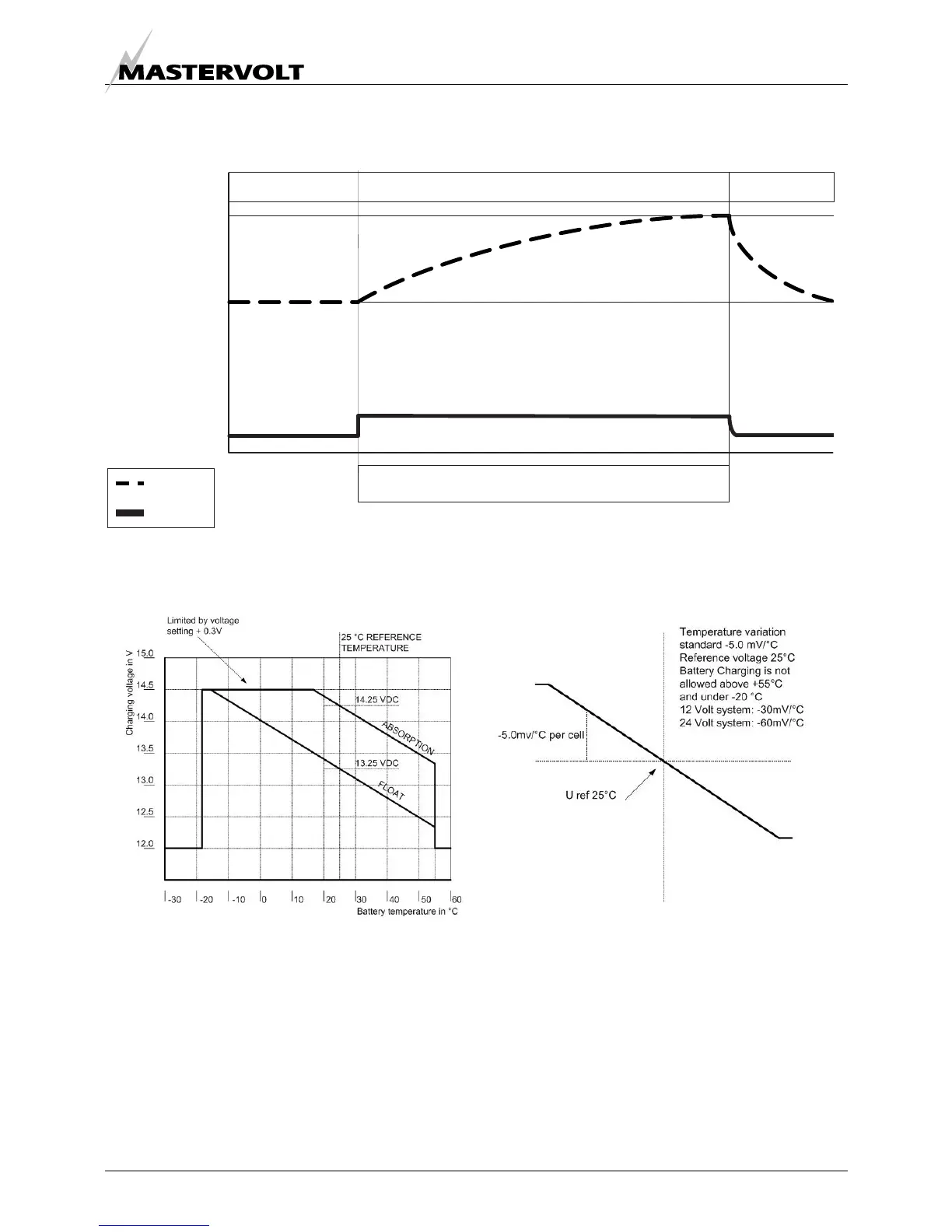

Figure 11: Charge characteristic of the equalize charge cycle (see section 5.1.4) (at 25°C / 77°F)
Figure 12: Temperature compensation characteristic (charge voltage versus temperature)
FLOAT EQUALIZE FLOAT
Float voltage + 2.25V
= 15.50VDC
Float voltage
= 13.25VDC
10% of Imax
Max equalize time = 6hr
Start equalize cycle by jumper change (disabled when Gel)
= voltage
= current
