CombiMaster 120V Series – User and Installation Manual
3 PRODUCT DESCRIPTION
The CombiMaster Inverter/Charger is a battery charger, inverter and AC transfer system in one
compact case.

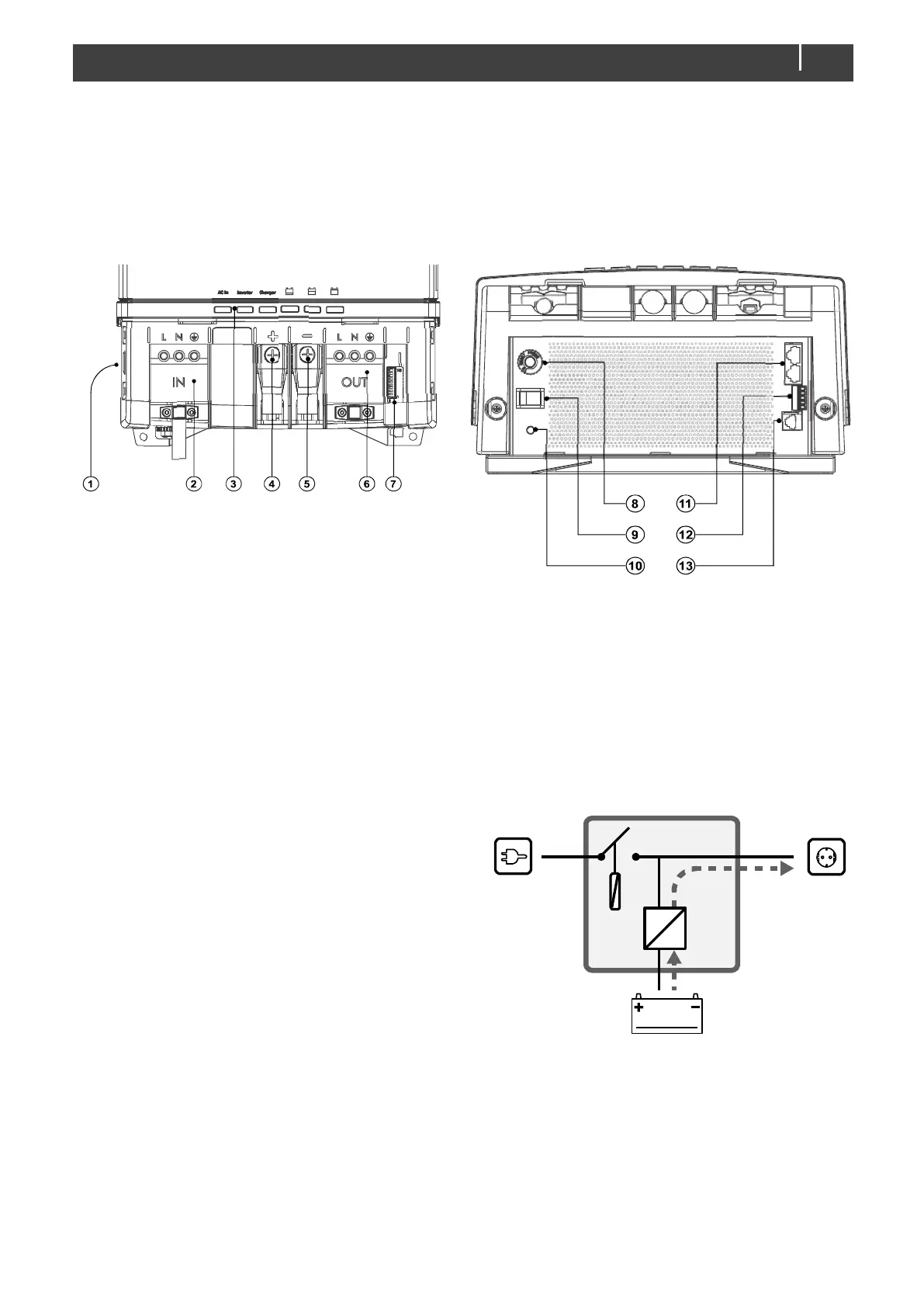

3.1 Overview of the connections
Front side with open connection compartment
Figure 2. Connections
1 Grounding system jumper
2 AC input
3 Status LEDs
4 Positive battery terminal [M8 screw]
5 Negative battery terminal [M8 screw]
6 AC output power
7 DIP switches
8 Resettable thermal fuse (30A)
9 Main switch
10 5/16" Ground stud
11 CZone/MasterBus connection
12 Accessories connector
13 Temperature sensor connection
3.2 Operating modes
• Inverter mode; When there is no external AC
power available, the inverter provides AC power
on the AC output. If energy saving mode is
enabled, battery power consumption will be
reduced when there is no (i.e. less than 20W for
10 seconds) load on AC OUT. Please note that
small loads such as wifi routers, satellite
receivers or digital clocks are most likely not to
work in this mode.
AC
DC
AC IN AC OUT
BATTERIES
