OM-248 440 Page 11
3-7. Typical Lens Adjustment Procedure (Variable Shade Helmets)
Lens assembly displays prior
settings when turned On. Re-
tained settings are not shown
in example.
In the Grind mode the lens is a
fixed shade No. 3. No lens ad-
justments are possible.
Cut mode is not present on 62V
or 52F helmets.

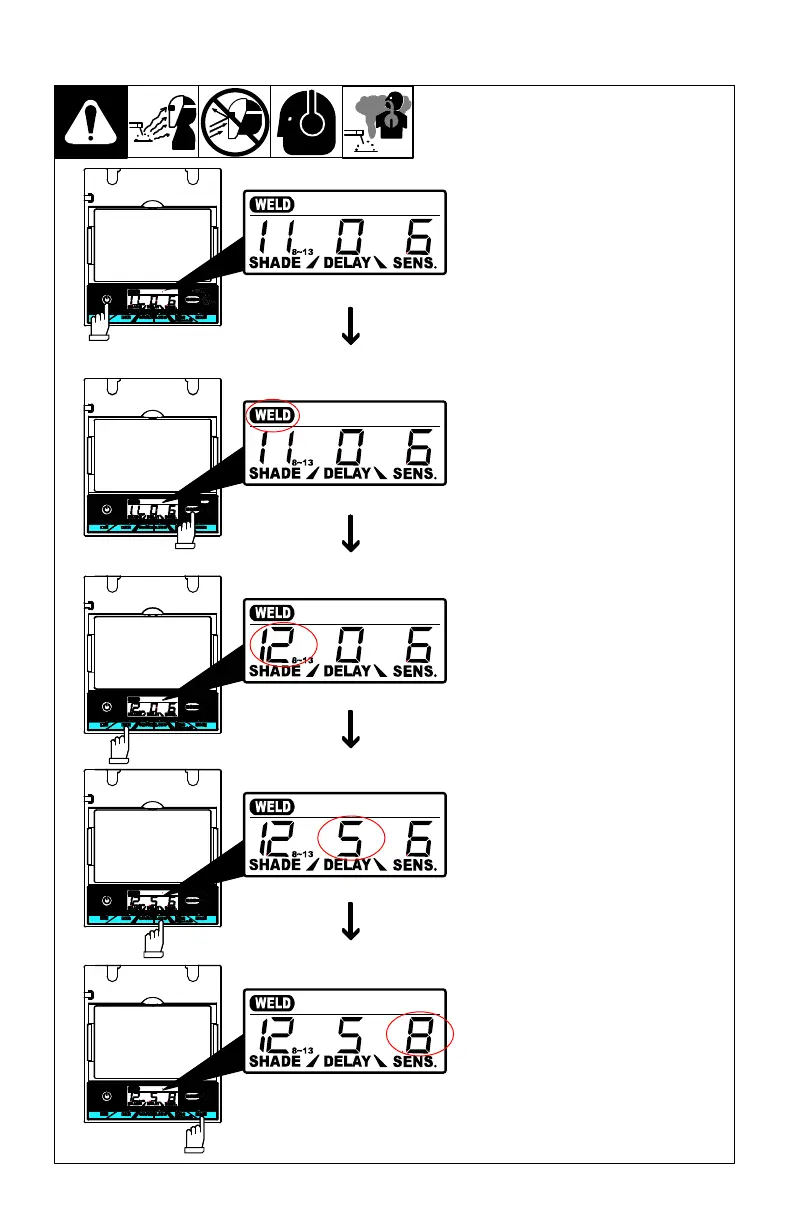

Adjusting Lens Assembly:
Turn lens On. Display screen
appears.
Select mode (Weld, Cut,
Grind).
Select shade by pressing LTR
and DKR buttons.
Select Delay by pressing
Short and Long buttons.
Select Sensitivity by pressing
Less and More Buttons.
Begin work.
To Next Page
