OM-248 440 Page 7

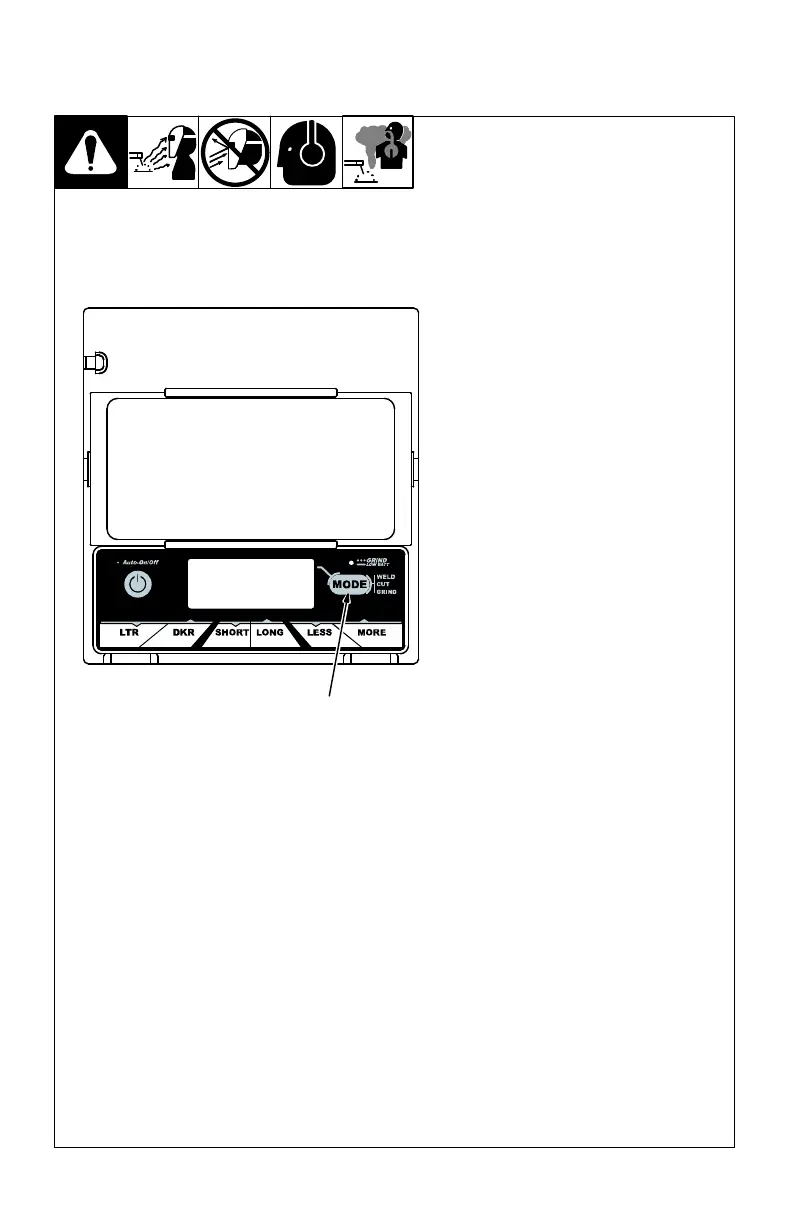

3-3. Mode Control (Variable Shade Helmets)
1 Mode Control Button
Press Mode button to select the mode
appropriate for the work activity:
Weld Mode − used for most welding
applications. In this mode the lens
turns on when it optically senses a
welding arc. Adjust shade, sensitivity,
and delay settings as needed.
Cut Mode − used for cutting applica-
tions. In this mode the lens turns on
when it optically senses a cutting arc.
Adjust shade, sensitivity, and delay
settings as needed.
Cut mode is not present on 62V or
52F helmets.
Grind Mode − used for metal grinding
applications. In this mode the shade is
fixed shade No. 3. No lens adjust-
ments are possible.
1
(73V) Variable Shade Lens Assembly
