OM-248 440 Page 14

5-2. Replacing Outside Lens Covers On 73V Helmets

! Never use the auto-darkening

lens without the inside and

outside lens covers properly

installed. Welding spatter will

damage the auto-darkening

lens and void the warranty.

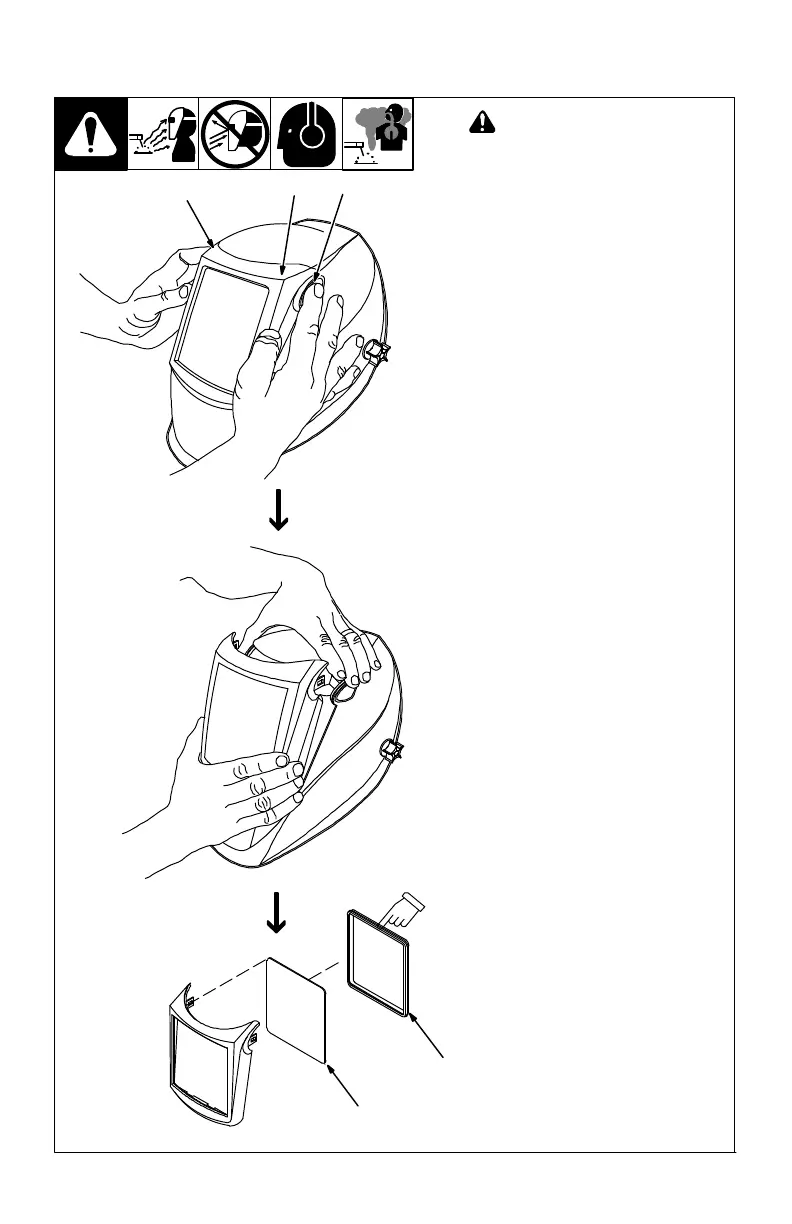

1 Front Lens Holder

2 Release Points

3 Lens Cover

4 Gasket

Remove front lens holder by press-

ing release points and pulling the

holder away from the helmet.

Remove lens cover and gasket from

the holder. Replace lens cover and

reinstall gasket and lens in holder.

Reinstall holder in helmet.

 Be sure the flat side of lens

cover gasket faces the lens cov-

er holder.

8804 814 / 804 816

Be sure flat side of gasket

faces lens cover holder.
