OM-248 440 Page 13

SECTION 5 − REPLACING THE LENS COVERS

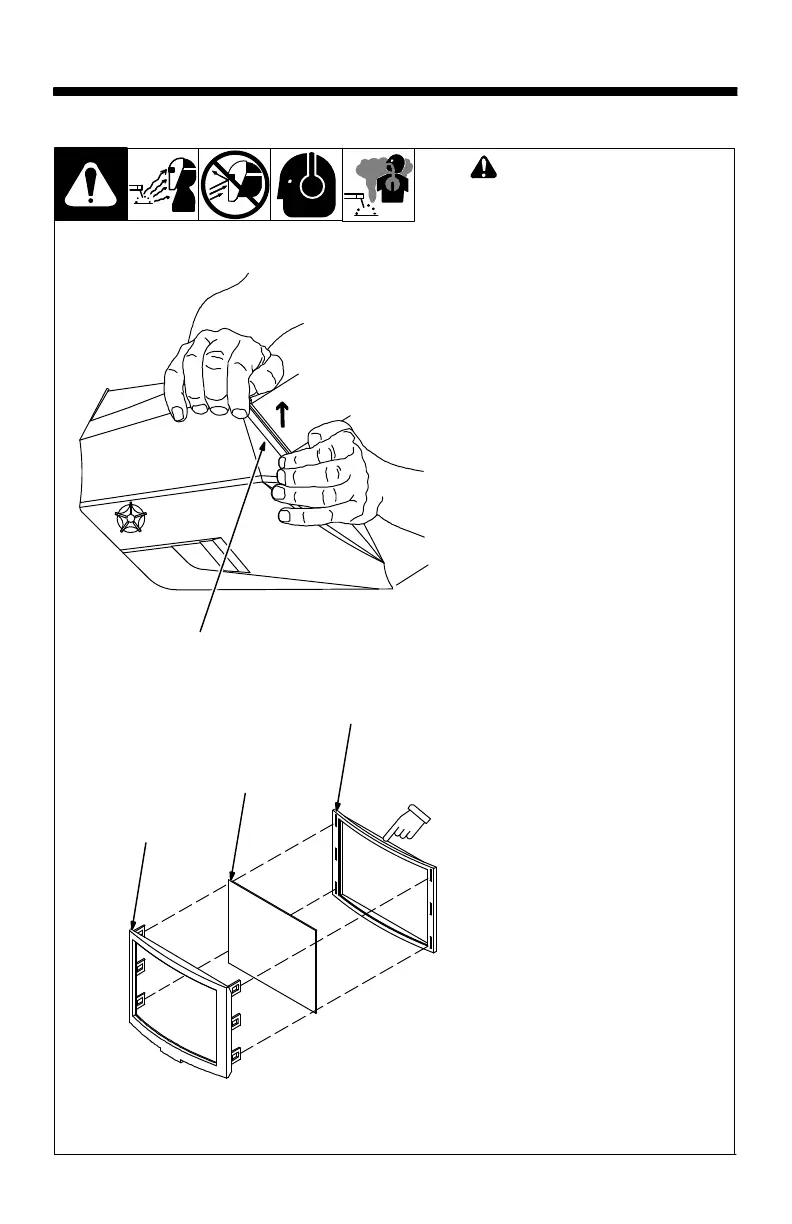

5-1. Replacing Outside Lens Cover On P10, 52F, And 62V Helmets

! Never use the auto-darkening

lens without the inside and

outside lens covers properly

installed. Welding spatter will

damage the auto-darkening

lens and void the warranty.

1 Outside Lens Cover Frame

2 Lens Cover

3 Gasket

Remove lens cover frame by grasp-

ing the outside corners and pulling

the frame away from the helmet.

Remove lens cover and gasket from

the six-prong lens frame. Replace

lens cover and reinstall gasket and

lens in frame. Reinstall frame in hel-

met.

 Be sure the flat side of lens gas-

ket faces the six-prong lens

frame.

 Be sure all six prongs of lens

frame are securely fastened in

slots in helmet.

804 794

Be sure flat side of gasket

faces lens frame.
