Source Components
Up to 4 stereo audio source components may be connected to the
MRC- 8e / 8.4e.Devices supplied by most manufacturers will work with this system,and
industry standard RCA connectors at the rear of the
unit provide line- level input and output connections for devices such as Tuner,CD,Tape,DSS,
MP3 players etc.
Each source component is selected based on keypad entry key,which
corresponds to one of the 4 audio devices (labelled as input 1,input 2,input 3,input 4).For
maximum benefit,each of these audio sources
should be capable of being controlled via infrared remote.The MRC-
8e / 8.4e is capable of learning infrared commands from the audio
components remote control,allowing you to assign commands such as pause,play, shuffle,
change tracks or stations to keys on any of the 8
remote keypads or additionally via an optional hand held infrared
remote control.
Please note: Just as a radio is incapable of playing two different
stations at the same time,if multiple zones are listening to the same
source,they will be listening to the same music.You may wish to
consider multiple components of the same type (such as the tuner) if
different zones wish to listen to different radio stations at the same time.

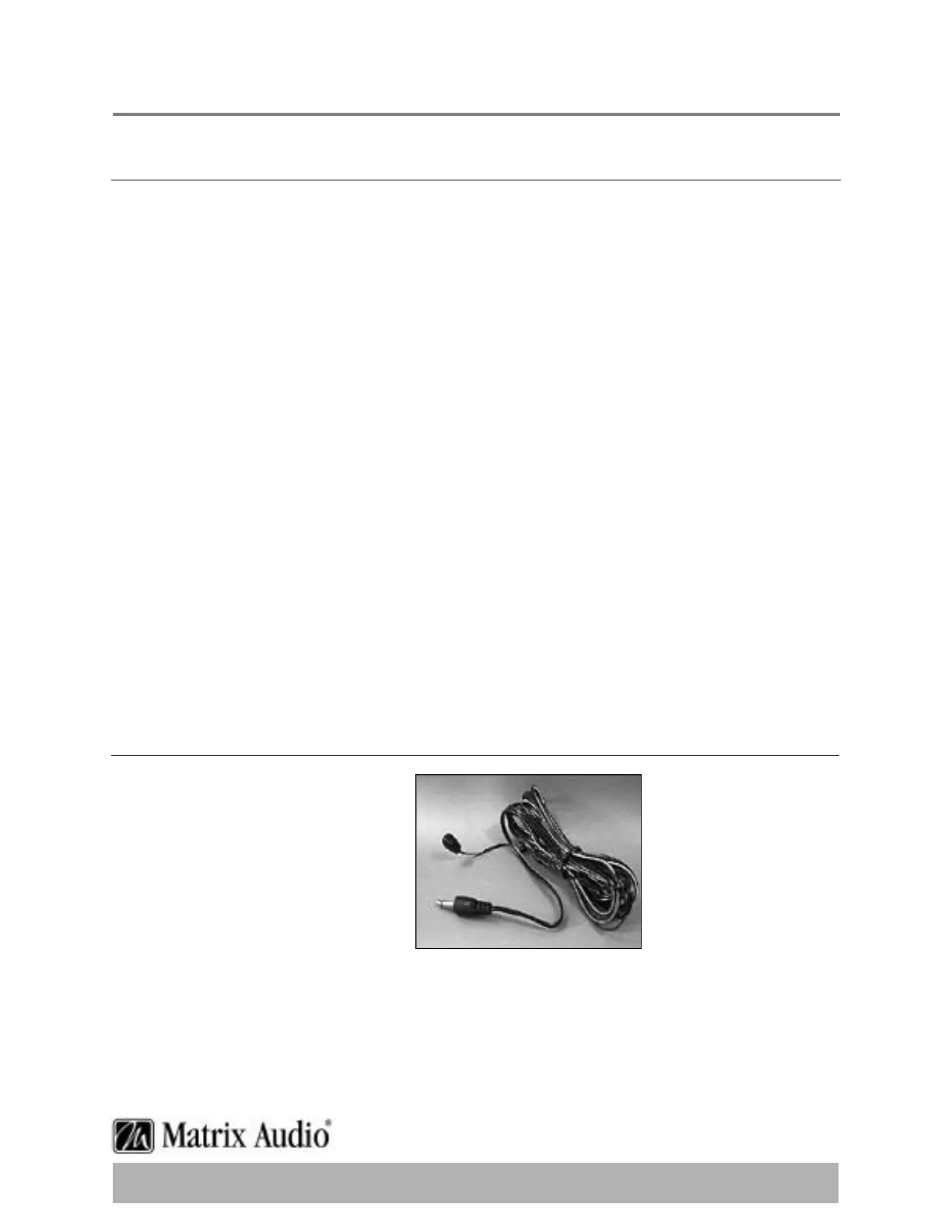

Infrared Emitters
In addition to the RCA line input /
output connections for each of the
audio devices,there are also
connections for infrared emitters
(not supplied) which completes the
control circuit between the MRC- 8e
/ 8.4e and the individual audio
devices attached to the system.
Any commands received from the remote keypads are processed and
sent down this control lead to the audio device.Commonly available IR emitter leads are
unobtrusive,and attach to the audio devices remote
control sensor with double sided tape,and connect to the MRC- 8e/ 8.4e
by infrared 3.5mm mono output jacks located at the back of the unit.
