8
MULTI-PURPOSEKEYS: Keys have different functions depending on the screen being shown on the display.
GO: One touch start.
ENTER: To confirm each program setting.
UP / DOWN LEVEL: Easy information and level selection.
UP / DOWN TIME: Easy information and time adjustment.
STOP: Ends workout and shows workout summary info.
NUMBERKEYPAD: Workout data input for workout setup. Level adjustment during workout.
COOL DOWN: Puts the Climb Mill into a Cool Down Mode.
FAN: Allows for fan speed selection (fan has 3 operating speeds).
C7X ENTERTAINMENT ZONE
TV: Will take the user directly to the TV screen.
IPOD®: Will take the user directly to the iPod screen to allow for iPod control and play list selection.
VOLUME UP / DOWN: Adjusts the volume output through the headphone jack of either the integrated console TV or the iPod output.
NUMBERKEYPAD: Allows for easy TV channel selections.
CHANNEL UP / DOWN: Allows for channel selection.
DISPLAYMODE: Allows user to cycle through console display options, iPod, TV, or profile display.
LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel they were viewing.

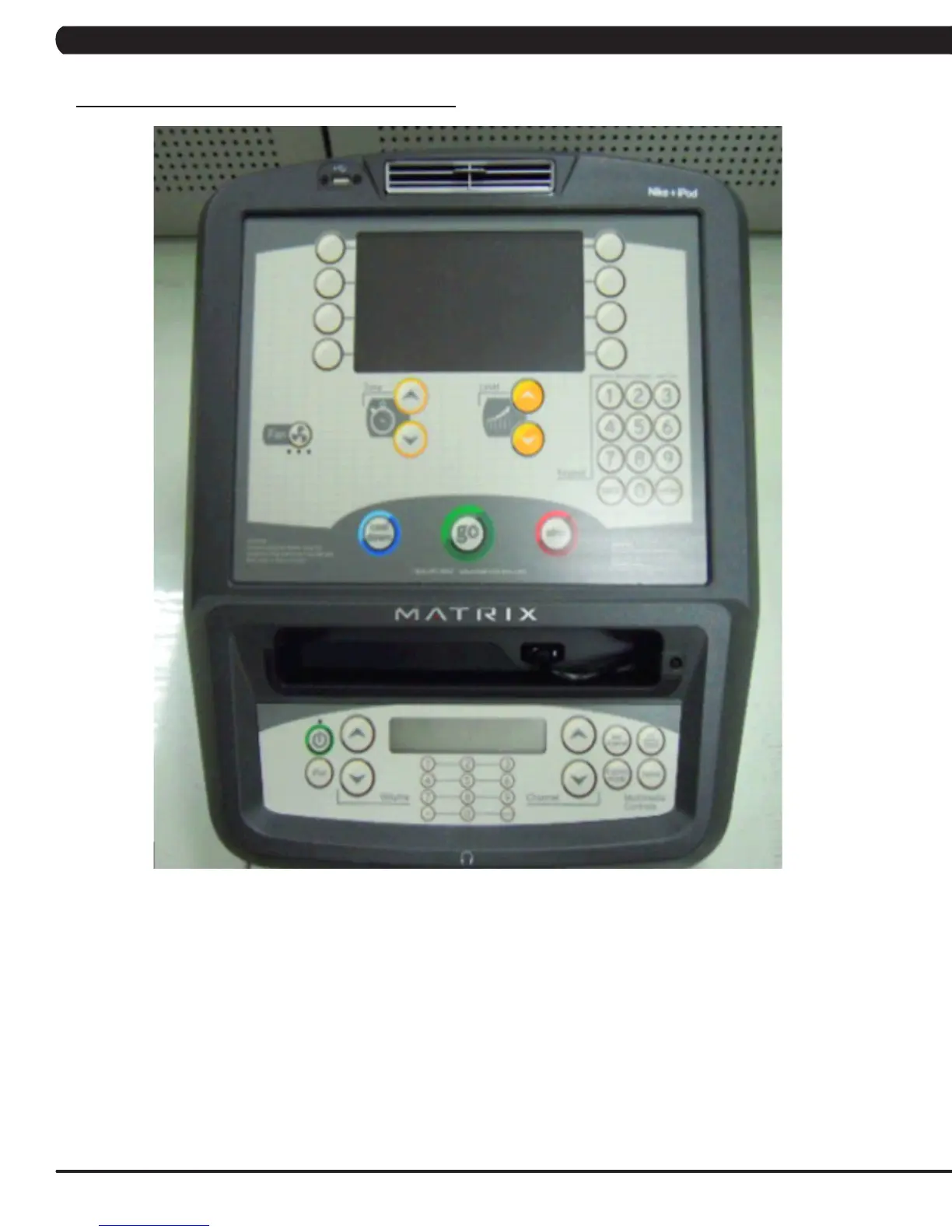

4.1 CONSOLE DESCRIPTION
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
