9.9 STAIR REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power and disconnect the cord from the machine.
2) Remove the side covers as outlined in Section 9.1.
3) Remove the front shroud as outlined in Section 9.4.

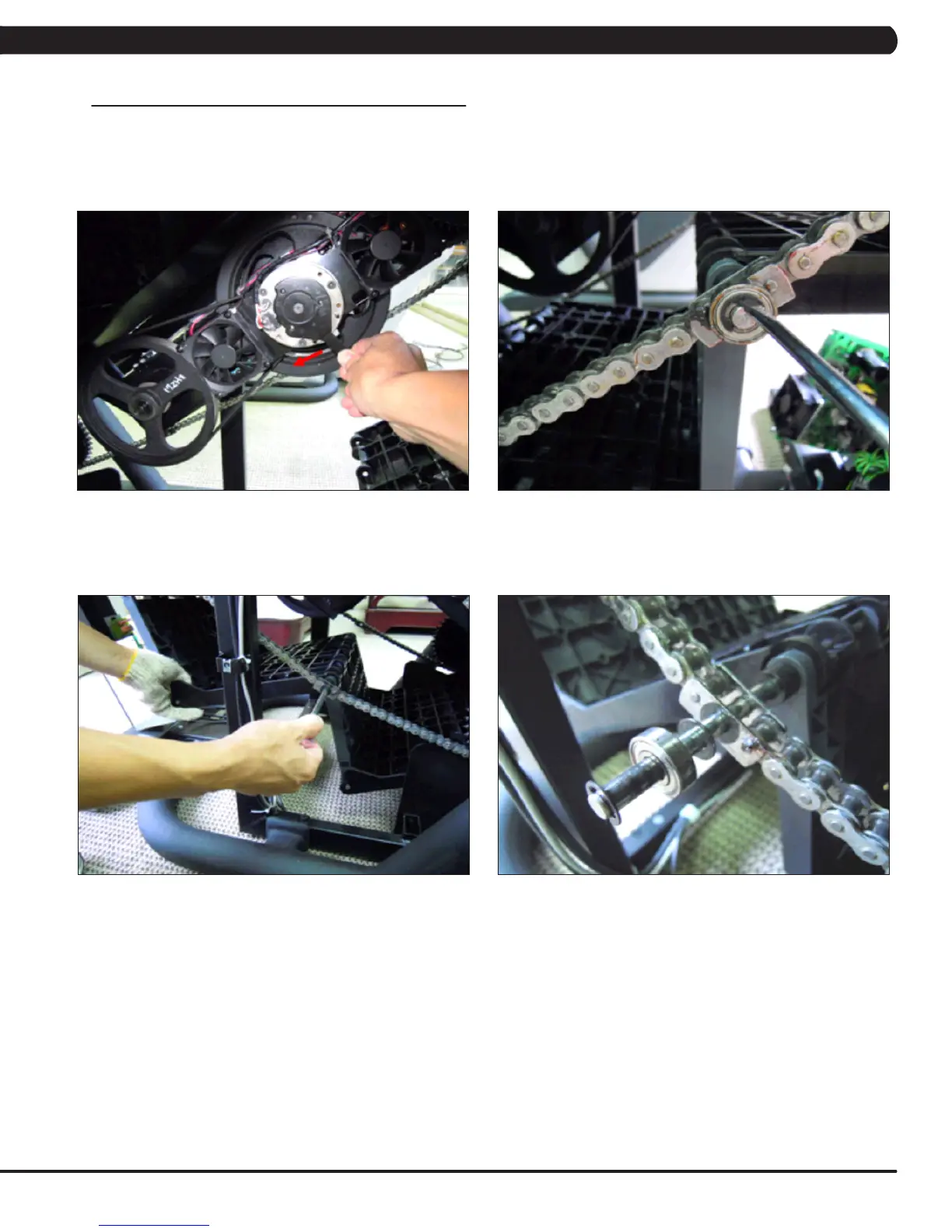

4) Turn the brake bar to the left to lock the stairs in place (Figure A).
5) Remove the E shaped clip from the long axle on the upper side of the stair needing to be replaced (Figure B).
6) Pull out the axle from the opposite side that you removed the E clip from (Figure C). NOTE: Pay attention to the order of the parts sequence
on the axle as you remove it (Figure D). The correct parts sequence is axle > E shaped clip > bearing > washer > sealed chain > spacer > stair.
FIGURE A FIGURE B
FIGURE C
FIGURE D
