CHAPTER 9: PART REPLACEMENT GUIDE

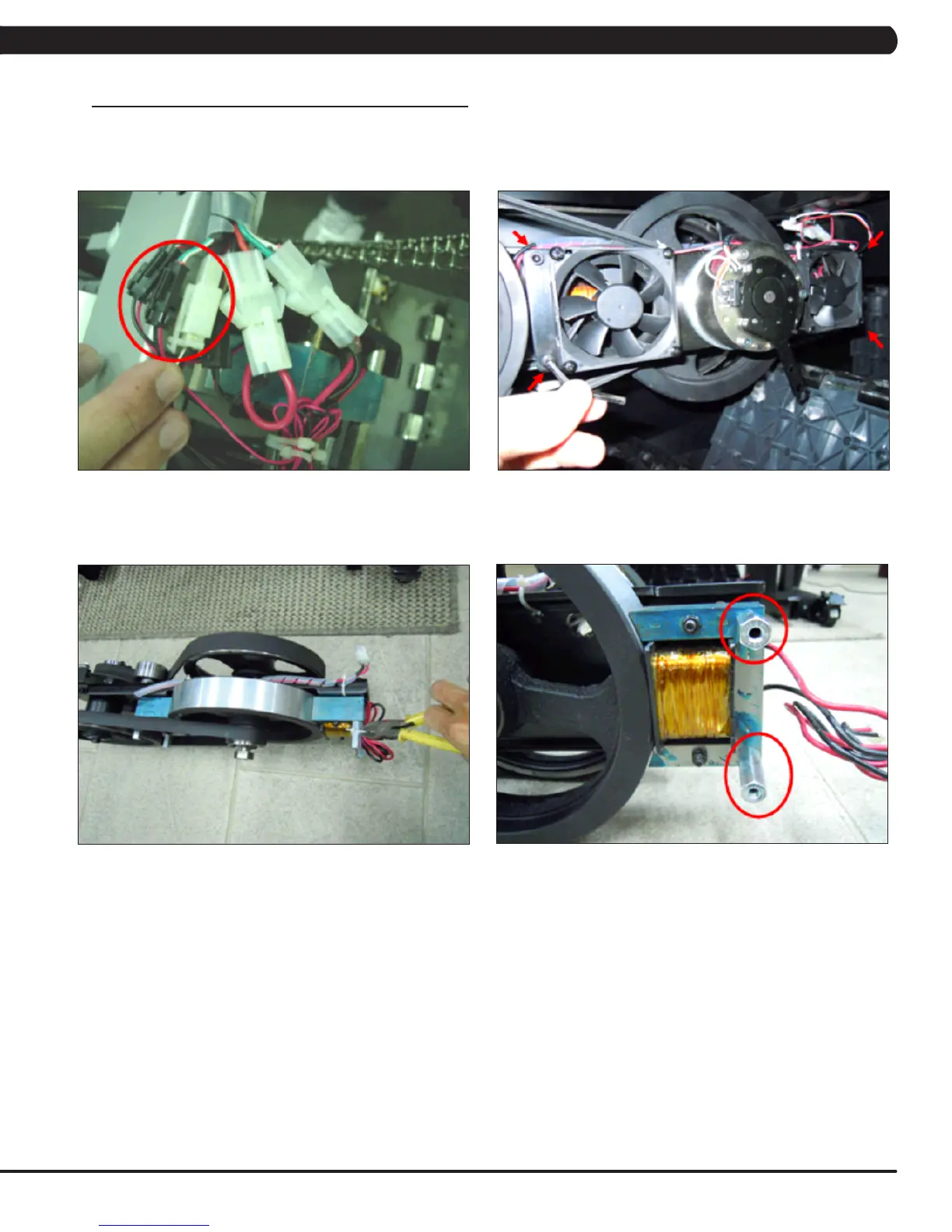

9.16 ECB REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the drive set as outlined in Section 9.10.
3) Disconnect the brake and both fan wire connections (Figure A).
4) Remove the 4 screws holding the brake and fan plate to the drive set (Figure B) and remove the assembly.
5) Remove the cable ties holding the ECB wiring to the drive set (Figure C).
6) Loosen 2 screws to remove the nut standoffs off the ECB (Figure D).
FIGURE C FIGURE D
FIGURE A FIGURE B
