70
CHAPTER 9: PART REPLACEMENT GUIDE
9.16 ECB REPLACEMENT - CONTINUED

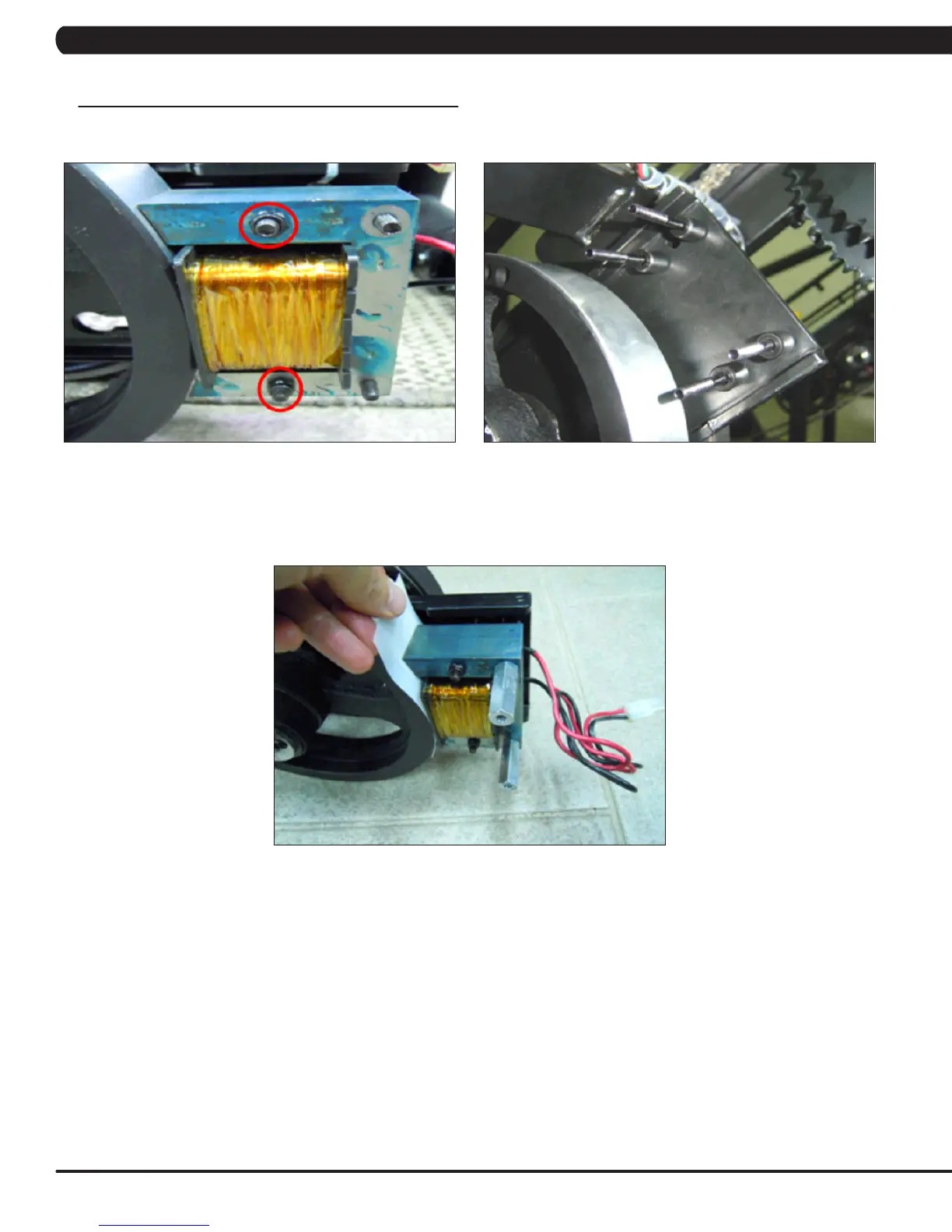

7) Loosen the remaining 2 screws to remove the 2 regular nuts (Figure E). Then remove the ECB.
8) There should be 4 screws & ferrules remaining to mount the new ECB (Figure F).
9) Install a new ECB onto the 4 screws / ferrules.
10)Beforetighteningthenuts,useapieceoffabricorothermaterialthatisapproximately0.5mmthicktoadjustthegapbetweentheywheel
and the ECB (Figure G). NOTE: Once the ECB is in the correct position, torque the 4 ECB screws to 10 N-m. There should normally be a small
amountoffrictionbetweentheywheelandtheECB.
11) Reverse Steps 1-8 to hook up the ECB and re-assemble the unit.
12) Test the Climb Mill for function as outlined in Section 9.20.
FIGURE E FIGURE F
FIGURE G
