8.10 ERROR CODE TROUBLESHOOTING - 02C1
ERROR CODE 02C1
1) SYMPTOM:
a. 02C1 - Speed tracking error.
2) SOLUTION:

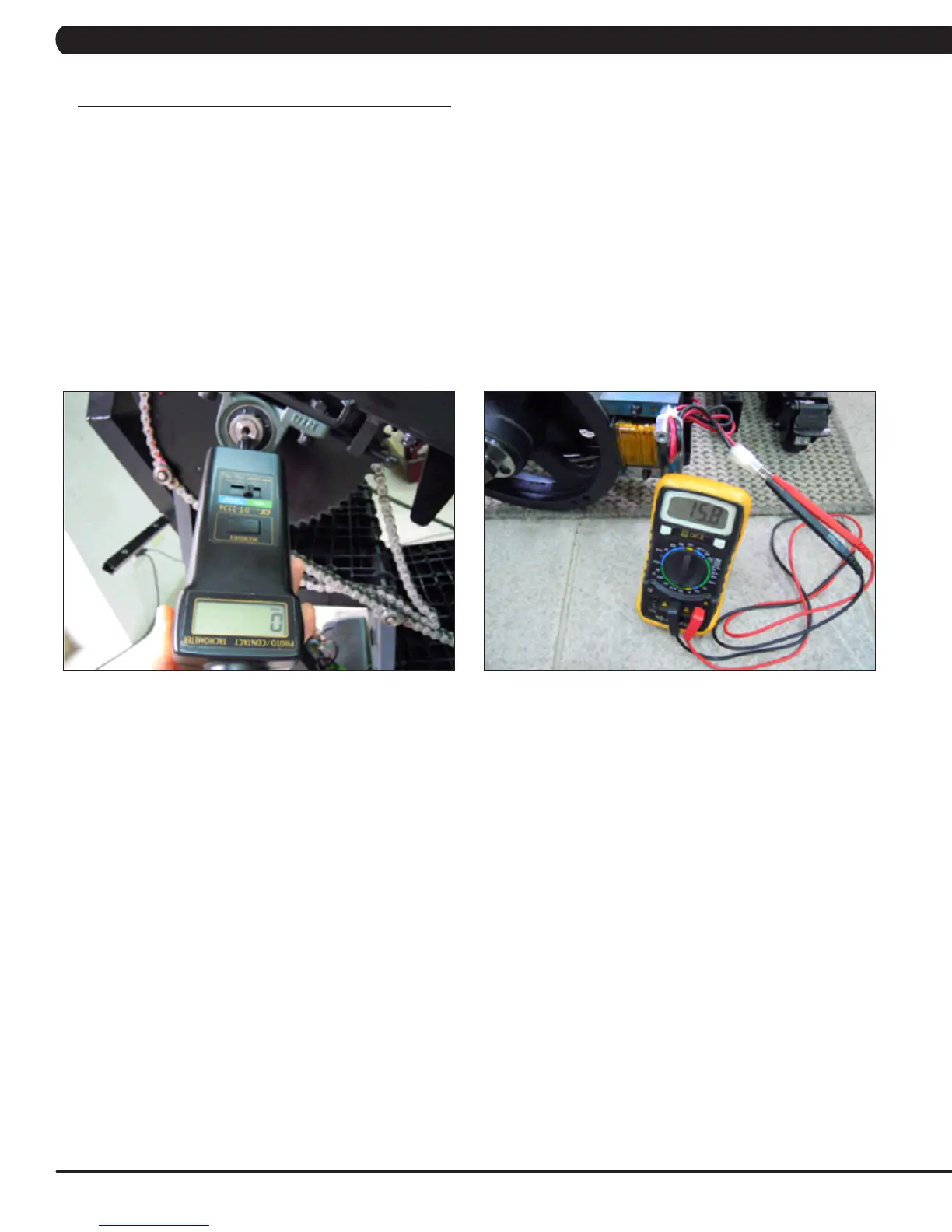

a. On L1 level, the default RPM should be 10-12. Measure the real RPM on the bearing in front of the sprocket (Figure A). Subtract the
default RPM from the real RPM.
- If the result is over 10 RPMs, you need to check the resistance on ECB1 and ECB2. The resistance should be approximately 13.6 ohms
(Figure B).
- If the ECBs are outside of this range, replace the defective ECB.
- if the ECB readings are good, check the gap between the ECB and the flywheel (should be approximately .5mm).
- If none of these solutions fix the issue, replace the LCB.
CHAPTER 8: TROUBLESHOOTING
FIGURE BFIGURE A
