8.9 ERROR CODE TROUBLESHOOTING - 02C0
ERROR CODE 02C0
1) SYMPTOM:
a. 02C0 - DC brake in manual mode.
2) SOLUTION:
a. Check if the DC brake is in the lock position when the unit is on standby (Figure A).
- If the brake is not in the lock position, turn the brake to the right as shown in Figure A.
- If the brake is in the lock position, remove the brake extension wire from the J1 socket on the LCB, then continue to Step b.
b. Measure the resistance across pin 2 and pin 3 on the brake extension wire (Figure B).
- If a resistance reading is shown, replace the brake.
- If no resistance reading is shown, replace the LCB.
CHAPTER 8: TROUBLESHOOTING

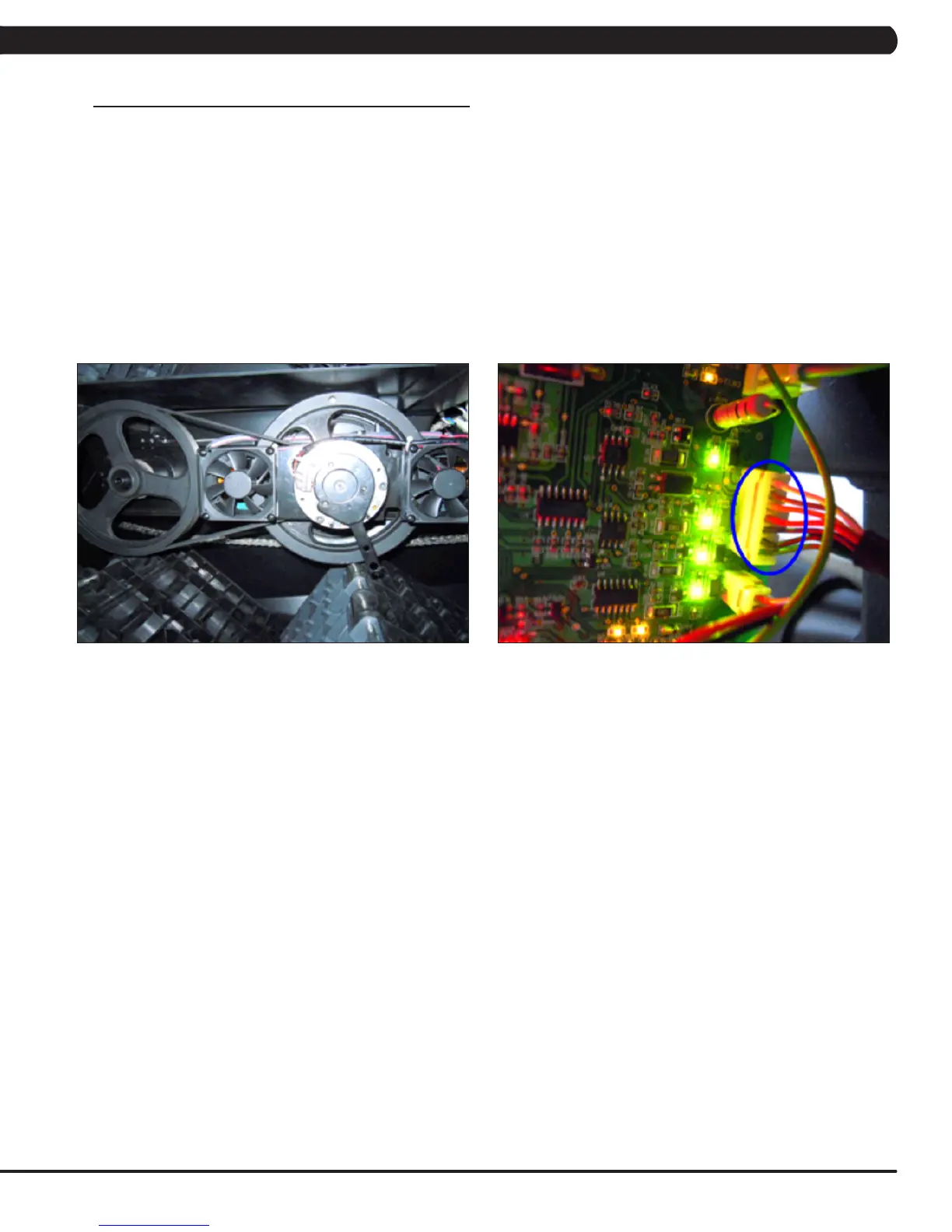

FIGURE A FIGURE B
