CHAPTER 9: PART REPLACEMENT GUIDE
9.19 PROXIMITY SENSOR REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Rotate the 2 plastic clips counter-clockwise to remove the Matrix logoed cover.
3) Remove the front shroud as outlined in Section 9.4.
4) Remove the proximity sensor cable from the LCB, and cut any wire ties holding the cable to the frame (Figure A).
5) Remove the 2 screws holding the proximity sensor to the frame (Figure B), and remove the proximity sensor.
6) Reverse Steps 1-5 to install a new proximity sensor. NOTE: The proximity sensor should be installed so that there is a gap of 3.5mm between
the sensor and the axle (Figure B).
7) Once the proximity sensor is installed, rotate the stairs at least 2 complete revolutions to make sure the sensor does not hit.
8) Test the Climb Mill for function as outlined in Section 9.20.

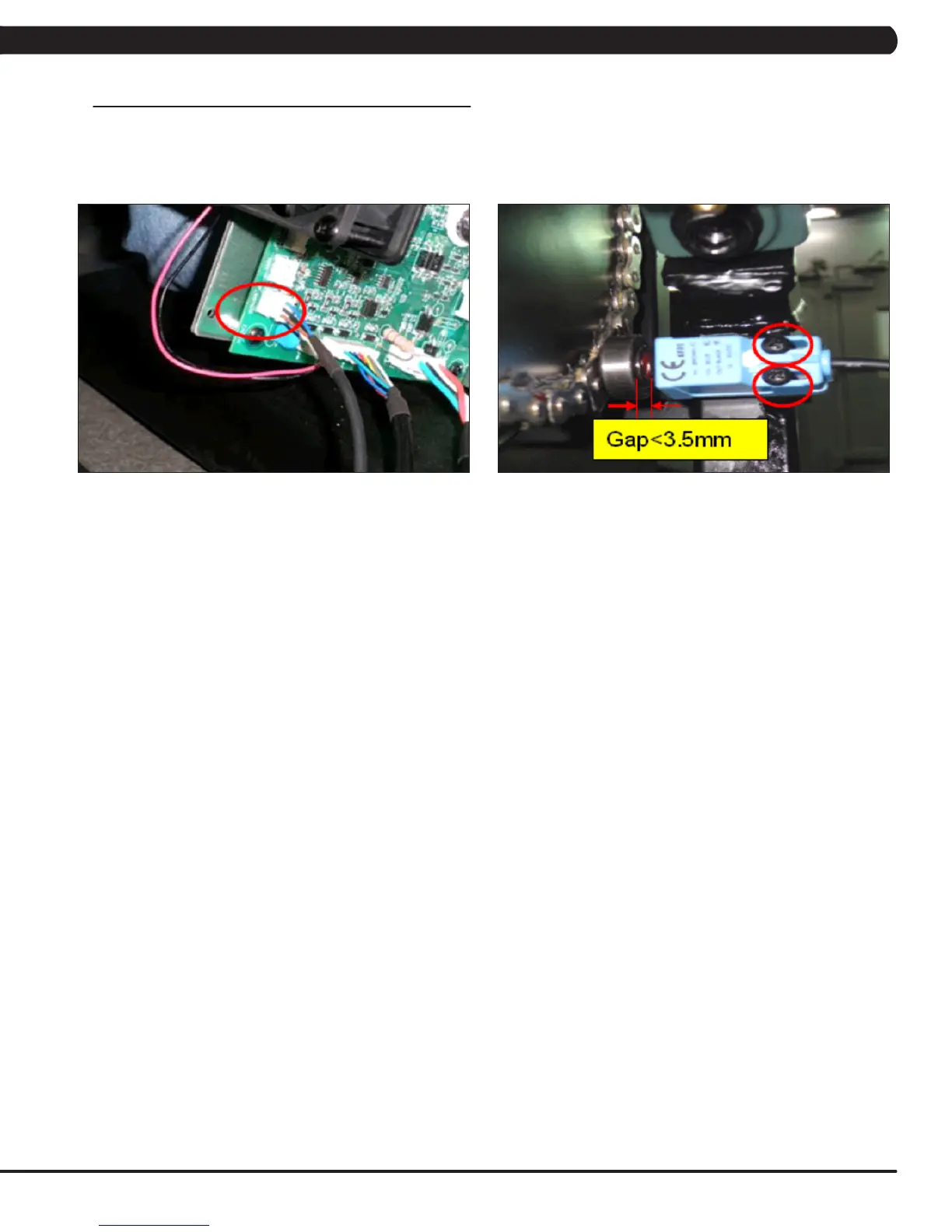

FIGURE A FIGURE B
