11.1 SOFTWARE UPGRADE PROCEDURE

CHAPTER 11: SOFTWARE UPGRADE PROCEDURE

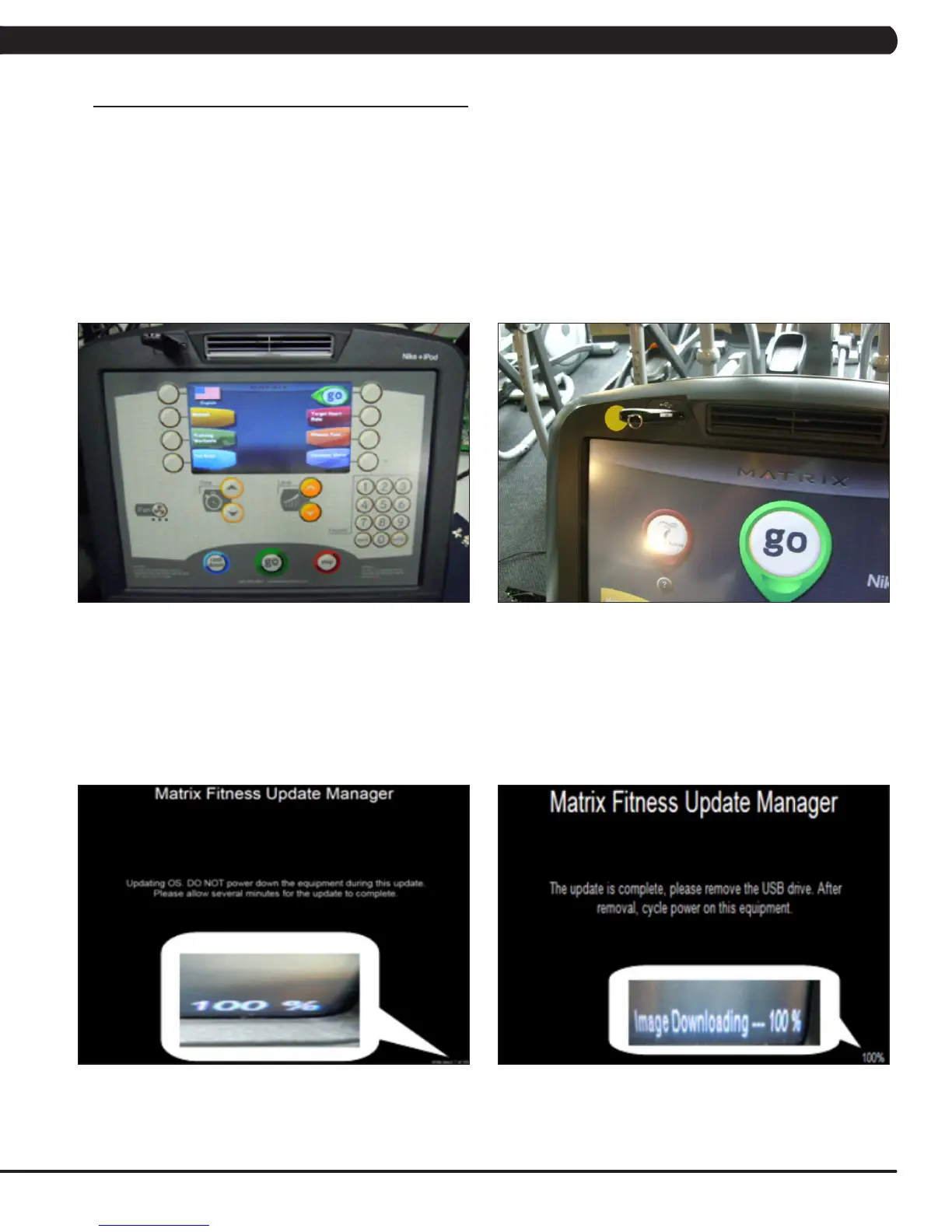

FIGURE A FIGURE B

*AnACpowercordisrequiredtoupdatesoftwareinthefield.Plugintheunitpriortobeginningtheupdateprocedure.

**Allpluginsmustberemovedpriortoupdatingsoftware(forexample,noIPodcanbeconnected).Donotusetheconsolewhilean

updateisinprocess.

***IfVAisinstalledontheconsole,waituntiltheVirtualActiveicononthestandarddisplaypictureturnsredpriortoupdatingthe

software.

1) Five files should be present on the USB drive. These are: DrummuDeploy.cab, NK, IO_XXX, updateLMM.confige, and Extract_CE.

2) Turn on the power to the Climb Mill, wait until the standard display picture has been come up (Figure A).

2) Enter Manager Mode by pressing ENTER, 1, 0, 0, 1, ENTER on the lower keypad.

3) Record the Accumulated Mileage, Accumulated Time, and Serial Number. NOTE: The information can be lost during the update procedure

and should be recorded so that the information can be entered into the newly updated console.

4) Press the HOME key to return to the standard display picture.

5) Wait until the Virtual Active icon turns RED. Insert the USB Drive into the USB port in the console (Figure B).

6) After a few seconds, the Climb Mill will auto run the upgrade processing. The achieved percentage of the scheduled process will be

displayed in the bottom right corner of the display (Figure C).

7) When the update is complete, the display will ask you to remove the USB drive (Figure D). Once the USB drive is removed, turn off the

Climb Mill and wait 10 seconds, then turn the Climb Mill back on.

8) Enter Service Mode by pressing ENTER, 3, 0, 0, 1, ENTER on the lower keypad and check that the Machine Type is correctly set for Climb

Mill and that the Service On Boot setting is NO. If the Machine Type is not correct, press ENTER, 3, 0, 0, 2, ENTER. This will do a software

parameter reset. Then change the Machine Type. Once the Machine Type is changed cycle unit and console power. Press the HOME key to

return to the standard display picture if the Machine Type is correct.

9) Also enter the values recorded in Step 3 in Service Mode (if needed).

9) Enter Manager Mode by pressing ENTER, 1, 0, 0, 1, ENTER on the lower keypad. Press SOFTWARE VERSIONS to verify that the new

software version is shown on the screen. Re-load software if any problems are seen.

FIGURE C FIGURE D

Matrix C7X - 03 User Manual
