8.1 ELECTRICAL DIAGRAMS - CONTINUED
CHAPTER 8: TROUBLESHOOTING

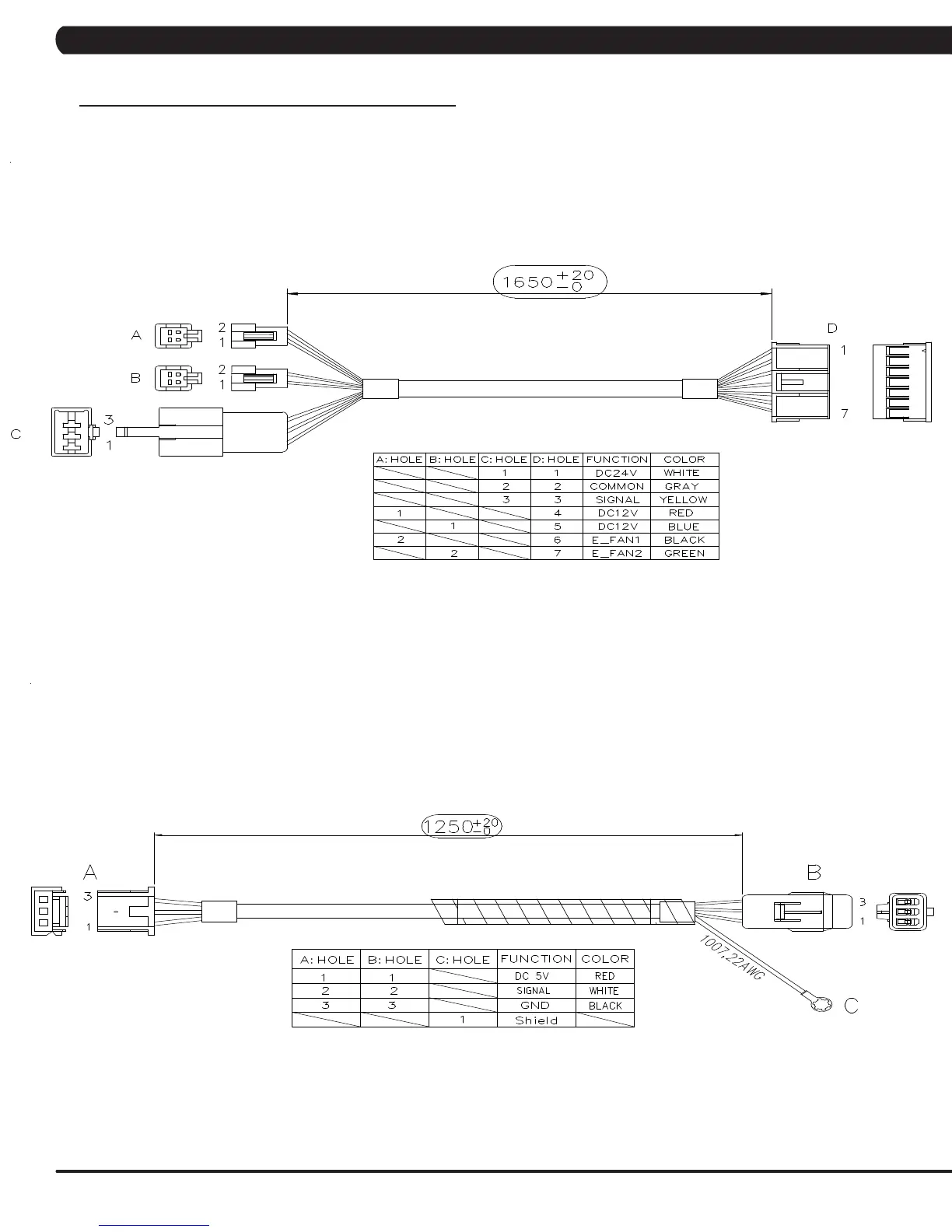

P19 - POWER SENSOR WIRE
P18 - CONTROL ZONE SENSOR WIRE
