Matrix C7X - 03 User Manual

51
CHAPTER 9: PART REPLACEMENT GUIDE

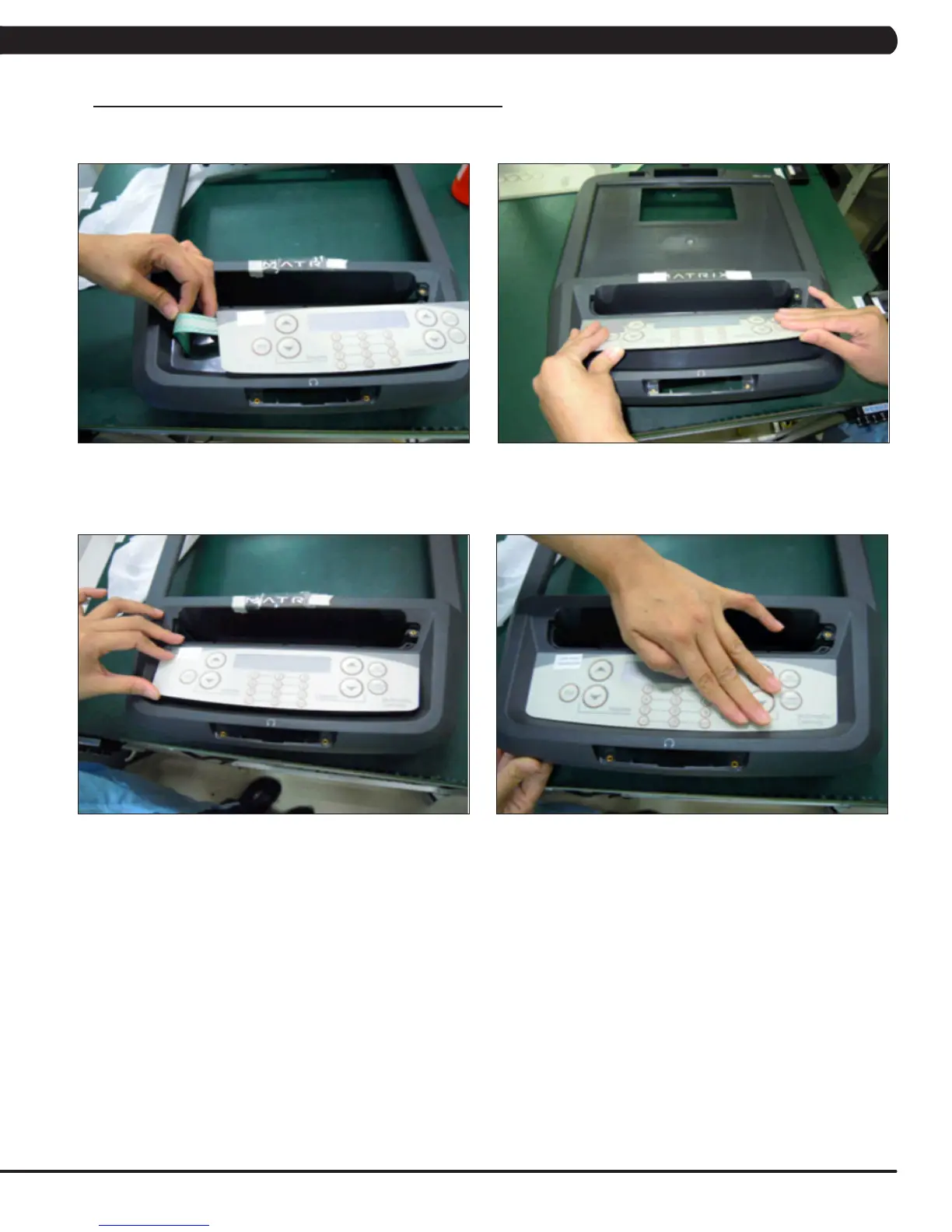

FIGURE E FIGURE F
FIGURE G FIGURE H
7) Press down on the corners of the overlay / keypad to keep it in place. Then remove the protective film (Figure G).
8) Once the overlay / keypad is in the correct position, press down on it to adhere it in positions (Figure H).
9) Use the same procedure to replace any additional faulty overlays / keypads. NOTE: Overlays / keypads cannot be re-used.
10) Test the Climb Mill for function as outlined in Section 9.20.
6) Push the overlay / keypad ribbon cable through the hole in the console and plug it in (Figure E).
7) Match the overlay / keypad to the cutout in the console (Figure F).
9.3 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED
