Matrix E7XI-01 User Manual

116
9.22 CONSOLE PARTS REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE

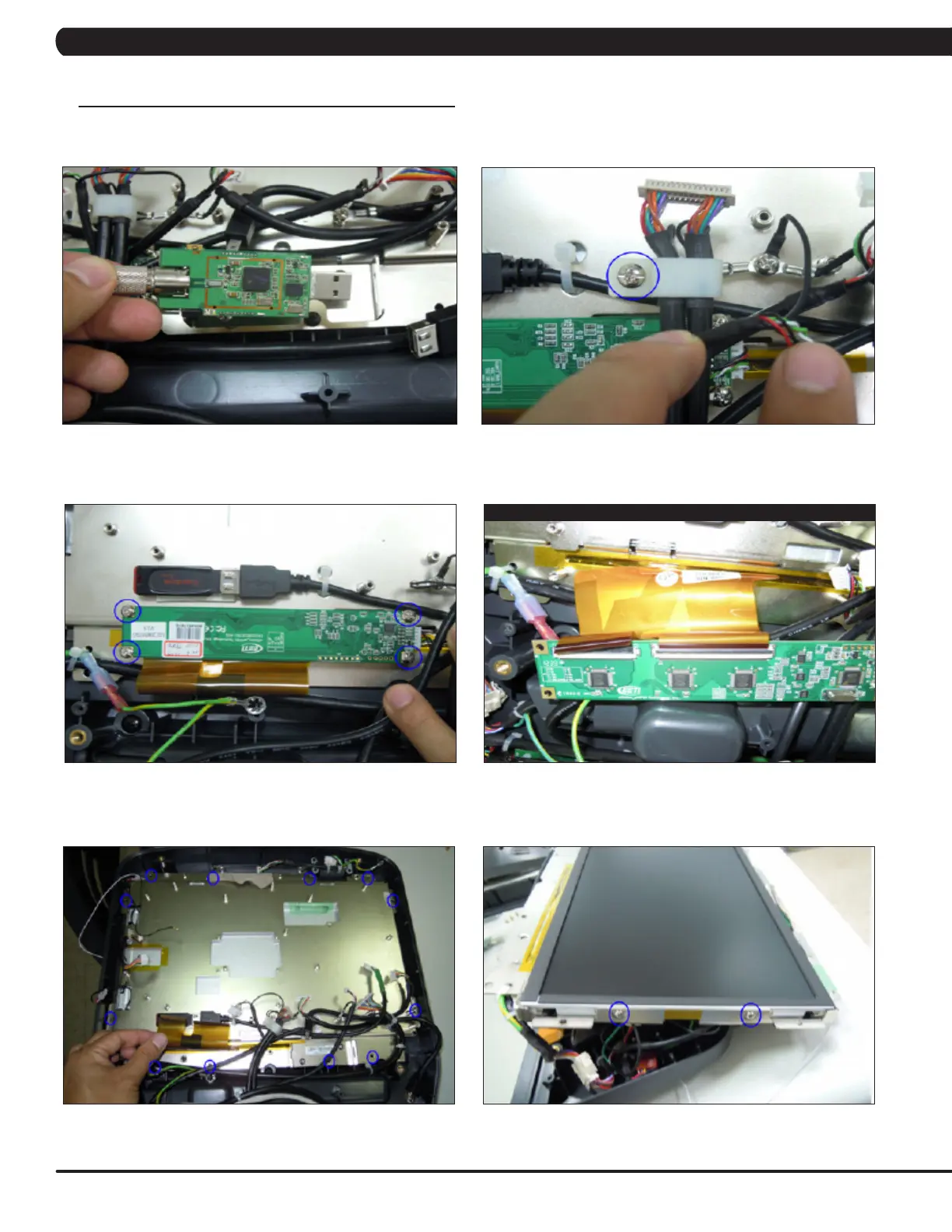

7. Remove the TV tuner (Figure G).
8. Remove the touch switch wire fixing plate (Figure H).
9. Remove the touch switch board (Figure I).
10. Remove the touch panel wire from switch board (Figure J).
11. Remove the panel inverter (Figure K).
12. Remove the panel plate (Figure L).
13. Reverse Steps 1-12 to install new console parts.
FIGURE JFIGURE I
FIGURE HFIGURE G
FIGURE LFIGURE K
