70
CHAPTER 8: TROUBLESHOOTING
8.10 TROUBLESHOOTING - ERROR 0
1AC

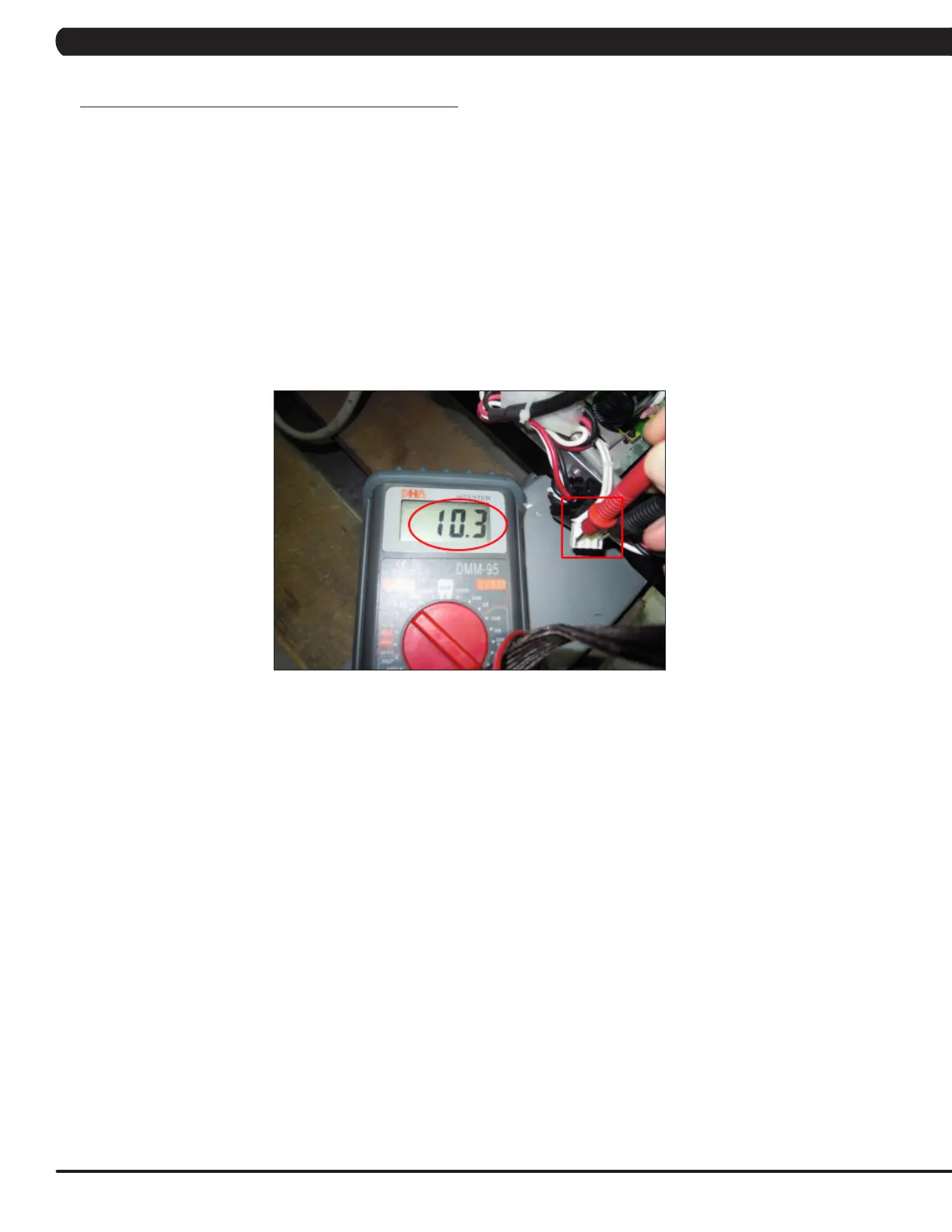

FIGURE A
ERROR CODE
01AC
1) SYMPTOM:
01AC - Resistance over current
2) SOLUTION:
1) Check if the resistance is short circuited by measuring resistance through the power resistor cable (Figure
A).
- If the resistance value is under 10 ohms, replace the power resistor
.
- If the resistance value is over 10 ohms, replace the LCB.
71
