9.2 FRONT SHROUD REPLACEMENT

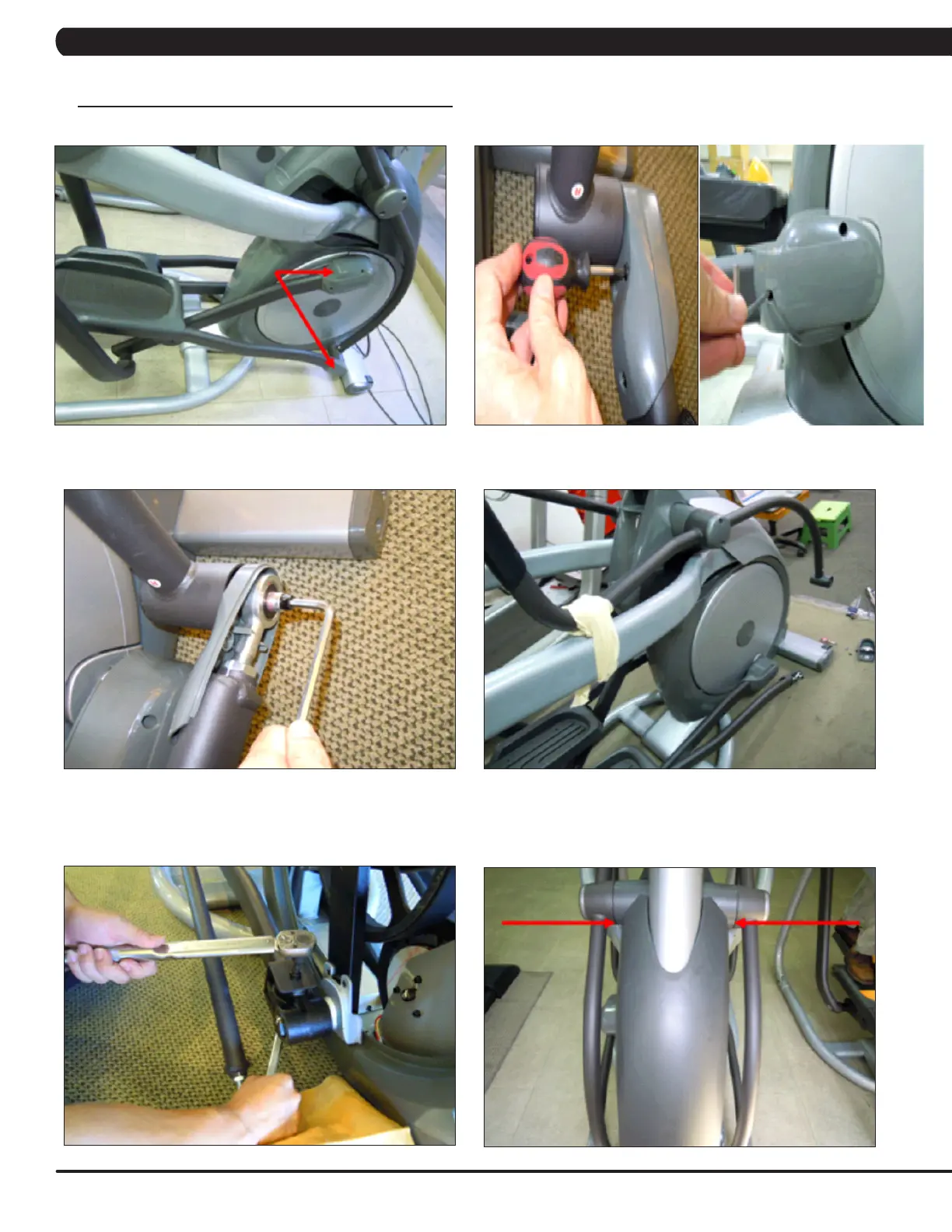

1) Remove the link arm and pedal arm plastic caps (Figures A & B).
2) Detach the dual action handlebar from the link arm (Figure C).
3) Secure the handlebar so that it is out of the way (Figure D).
4) Remove the front disks as outlined in Section 9.1.
5) Detach the pedal arm from the crank bearing assembly (Figure E).
6) Remove the 2 screws that hold the front top cover to the frame and remove the top cover (Figure F).
FIGURE F
FIGURE D
FIGURE B
FIGURE E
FIGURE C
FIGURE A
