54

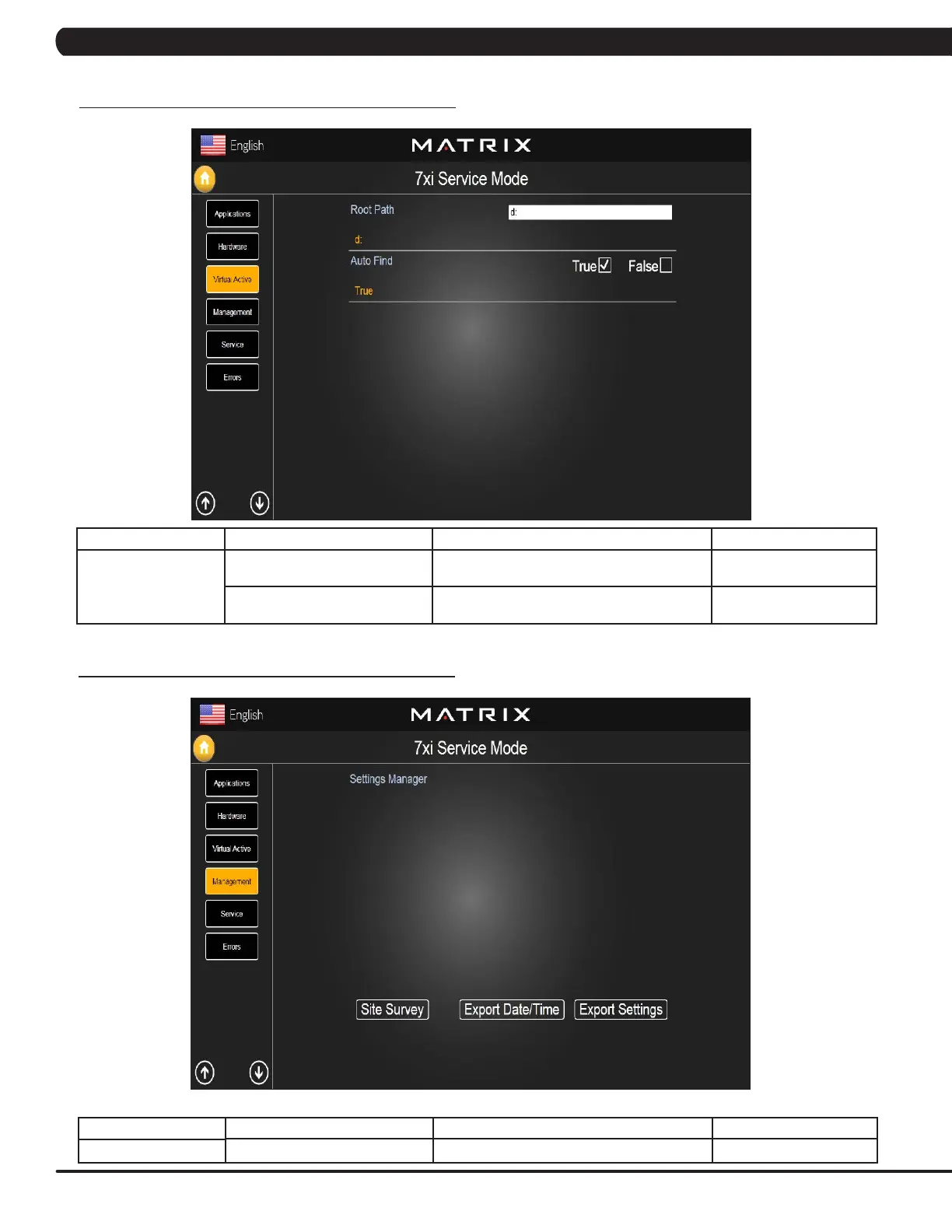

CHAPTER 7: SERVICE MODE
7.12
SERVICE
MODE - VIRTUAL
ACTIVE
7.13
SERVICE
MODE - MANAGEMENT
FUNCTION & DEF
AUL
TS
DESCRIPTIONS
MODIFIED
Root Path
This option can set the Virtual
Active root path.
D:
Auto Find
This option can set to auto find the Virtual
Active.
T
rue or False
SERVICE MODE
Virtual Active
FUNCTION & DEF
AUL
TS
DESCRIPTIONS
MODIFIED
Setting Manager
Setting Manager date
N/A
SERVICE MODE
Management
56
58
