Matrix E7XI-01 User Manual

115

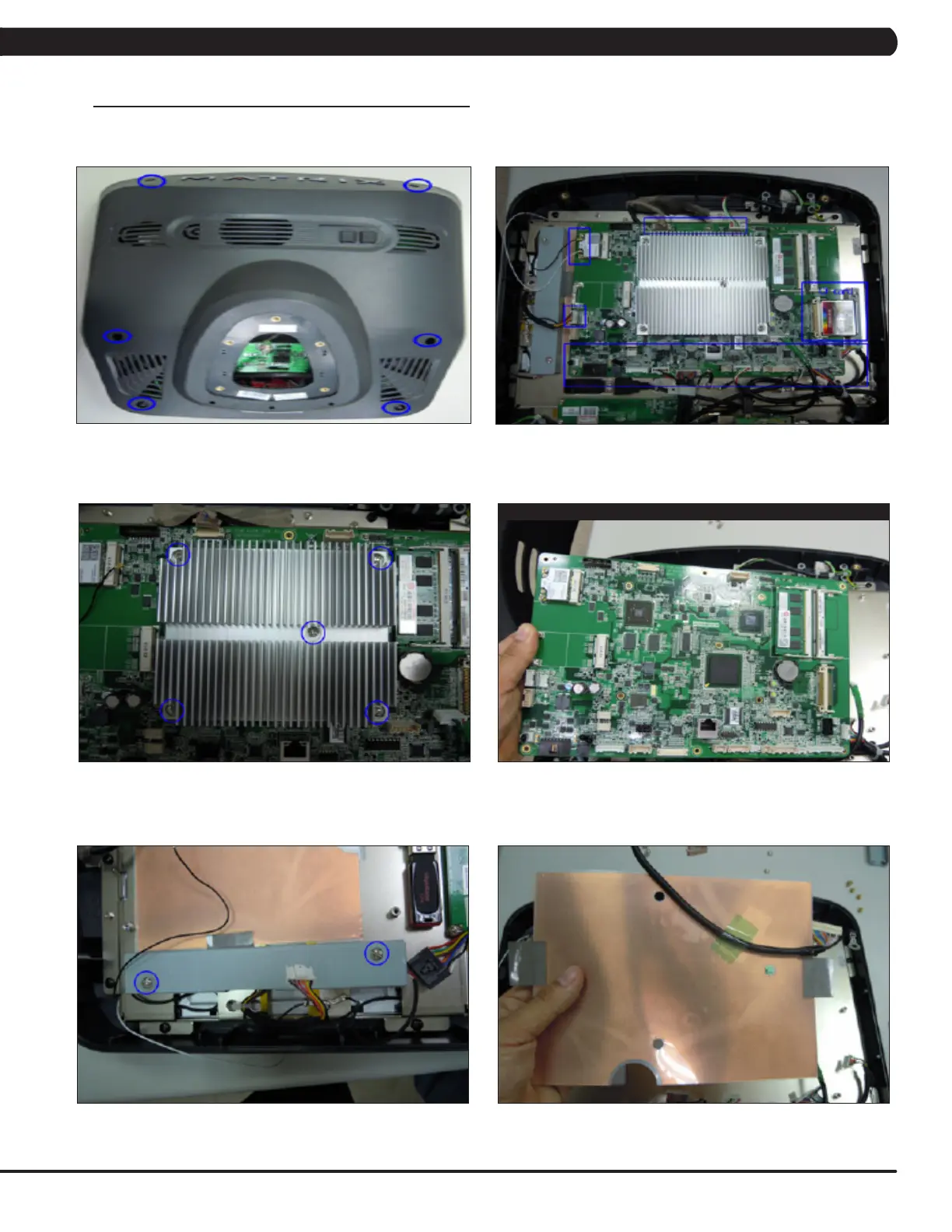

9.22 CONSOLE PARTS REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1. Remove the back cover of the console (Figure A).
2. Remove all the cables and CF card (Figure B).
3. Remove the heat sink from UCB (Figure C).
4. Remove the UCB (Figure D).
5. Remove the panel inverter (Figure E).
6. Remove the isolation plate and LVDS wire (Figure F).
FIGURE DFIGURE C
FIGURE BFIGURE A
FIGURE FFIGURE E
