MTX-ROUTER User Manual
Matrix Electronica S.L Page 48 of 87
Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA
http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65
Server IP: input IP address of the router as PPTP server, differ from LAN address
Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx.xxx.xxx.xxx
CHAP Secrets: user name and password of the client using L2TP service
Note: client IP must be different with IP assigned by router DHCP.
The format of CHAP Secrets is user * password *.

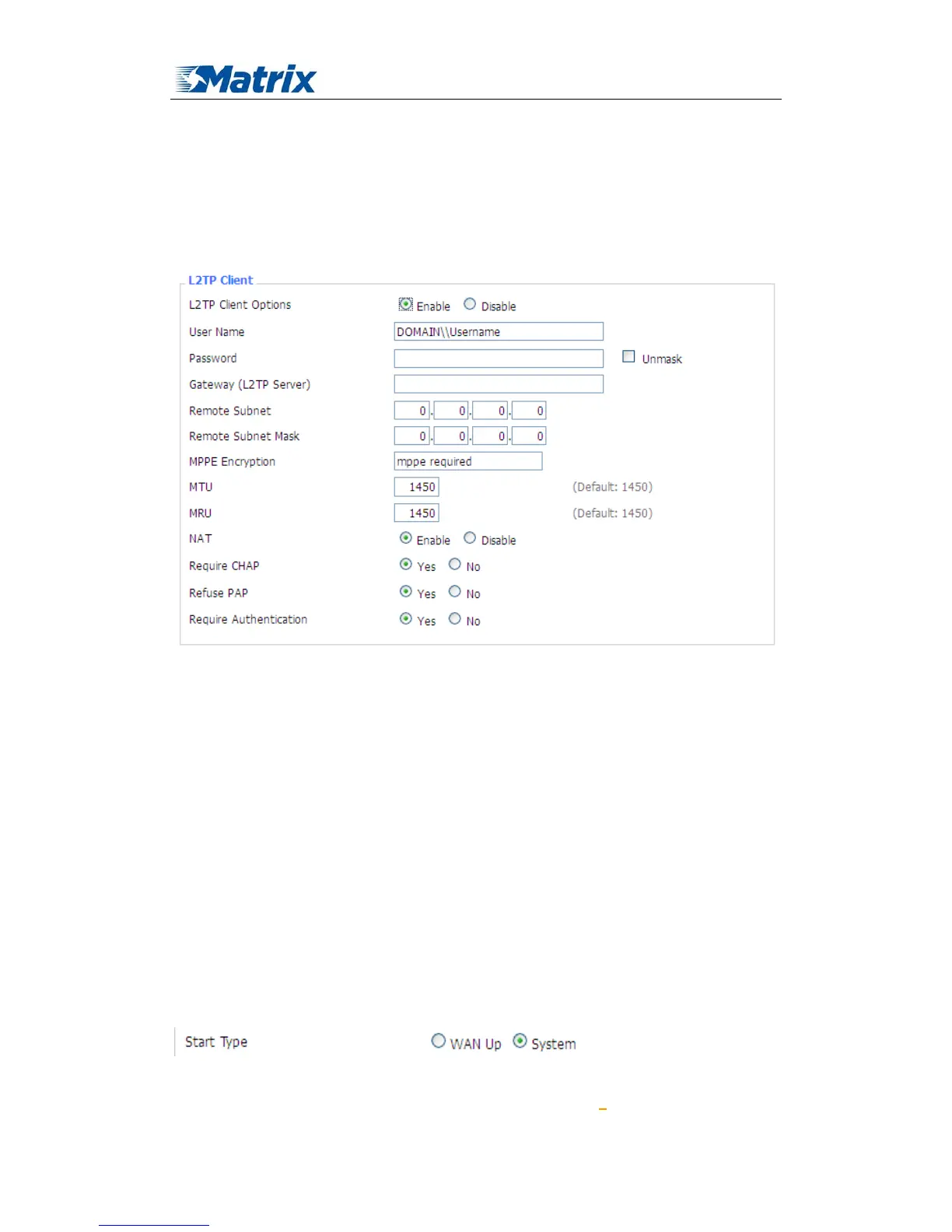

L2TP Client
Gateway(L2TP Server): L2TP server’s IP Address or DNS Name
Remote Subnet: the network of remote PPTP server
Remote Subnet Mask: subnet mask of remote PPTP server
MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption
MTU: maximum transmission unit
MRU: maximum receive unit
NAT: network address translation
User Name: user name to login L2TP Server
Password: password to login L2TP Server
Require CHAP: enable or disable support chap authentication protocol
Refuse PAP: enable or disable refuse to support the pap authentication
Require Authentication: enable or disable support authentication protocol
3.3.4.3 OPENVPN
OPENVPN Server
Start Type: WAN UP----start after on-line, System----start when boot up
