Matrix T50x-02 - Rear Roller Removal

52
8.2 Rear roller removal

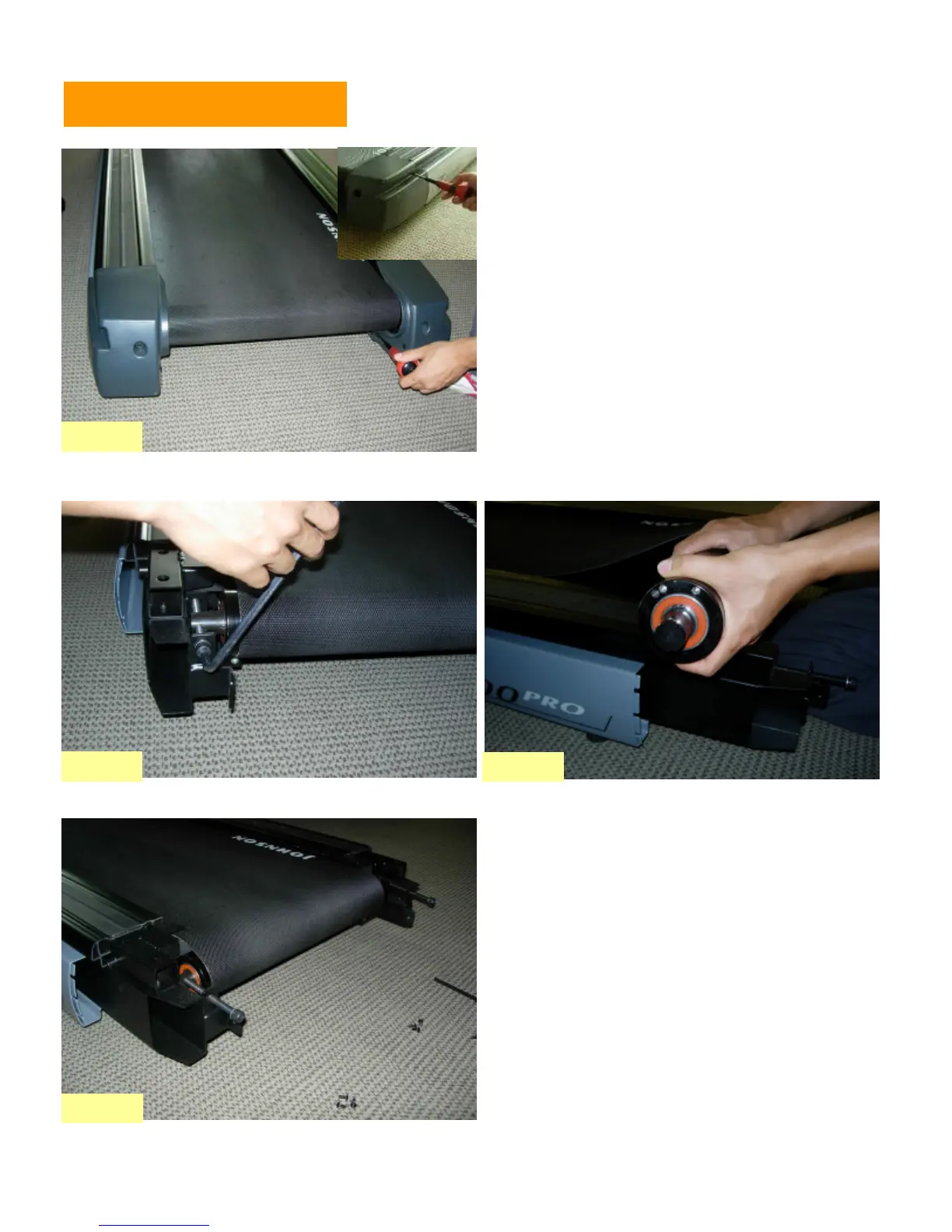

Figure A
Figure B
1. Turn off power and disconnect the cord
from the machine
2. Remove one of the end caps using a Phillips
screwdriver (Figure A)
3. Remove both roller adjustment screws using an
8mm Allen wrench ( Figure B and C)
4. Remove roller from running belt
(Figure D )
Figure C
Figure D
