Matrix T50x-02 - PCB Set Removal;Replacement

63

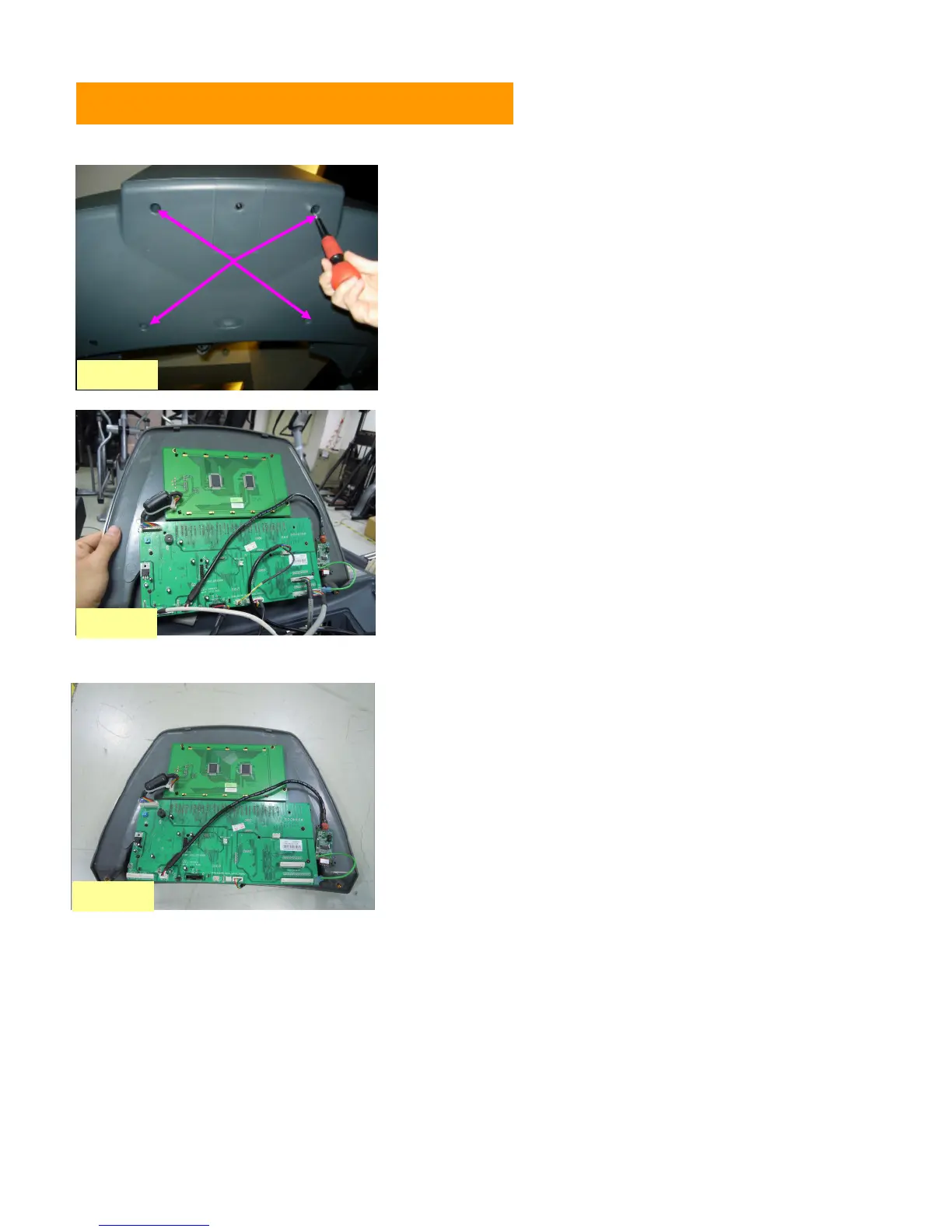

8.12 PCB set removal / replacement
1. Remove the four screws from underneath the console.
There are arrows stamped in the plastic at the proper
openings (Figure A)
2. Disconnect the wires from the PCB. (Figure B and C)
Figure A
Figure B
Figure C
