60
8.10 Drive belt removal
1. Remove plastic shroud from machine as outlined in
section 8.1
2. Release belt tensioner from drive belt as outlined in
section 8.5
3. Remove the front roller screw on the drive belt side,
and loosen the screw on the opposite side (Figure A)
4. Lift roller and remove old drive belt.
5. After installing new belt, check it for correct alignment to
the motor pulley before setting tensioner in place

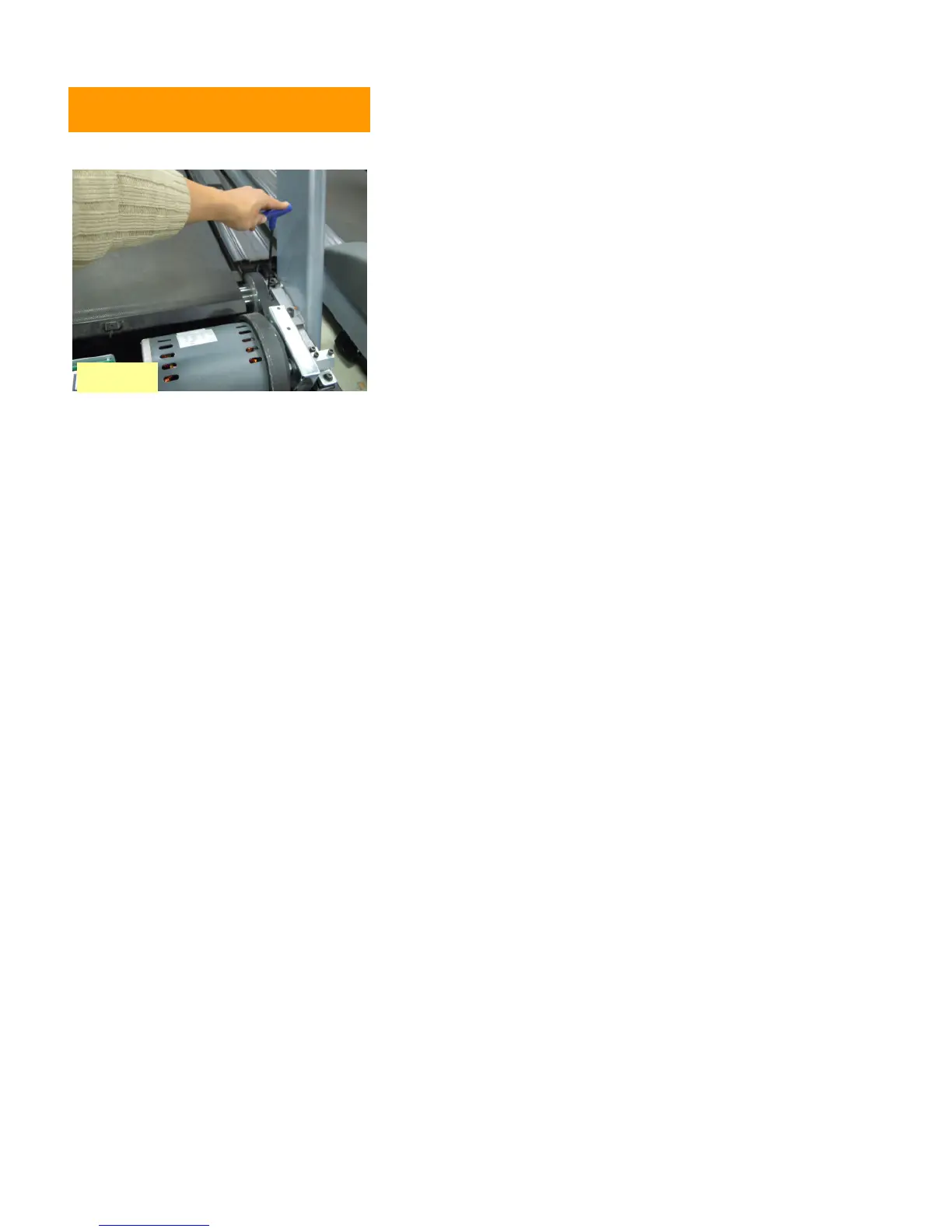

Figure A
