10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
Open Red Assembly Bag. Assemble the console base to the
console masts using item 15 button head cap screw and item 14
flat washer. Be sure to route the console cables down the console
mast through the larger opening in the mast which is closest to
the running belt. Make all appropriate wire connections within the
motor compartment.
Open Yellow Assembly Bag. Make appropriate wire connections
to the faceplate and then assemble to the console base using item
13 socket head cap screw, item 23 lock washers, and item 16
socket head cap screw. Item 16 is a shorter socket head cap screw
and gets assembled into the holes closest to the running surface.
All holes applicable to the assembly step can be noted by the
embossed arrow next to the hole. See pages 69-70 for detailed
instructions on wire connections.

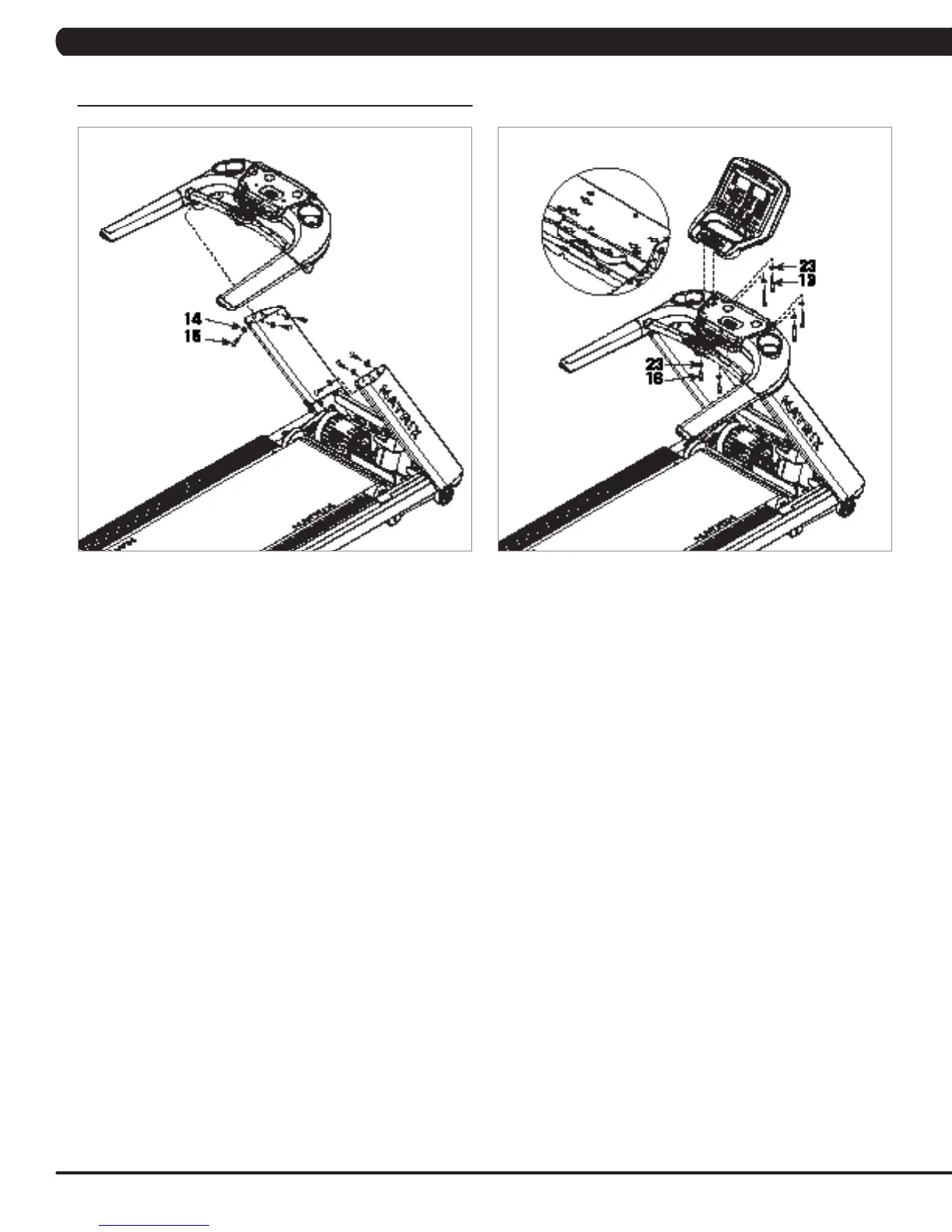

STEP 5 STEP 6
