1) Complete Steps 1-5 of the normal treadmill assembly from Section 10.3.
2)Peelupthekeypad,andreplaceitwiththecontrollerkeypadfromtheTVBracketKit(FiguresA&B).
3) Install the console as outlined in Section 10.3 Step 6 making sure to hook up the new keypad and that the coax cable (run up the console
mast with the console cable) is not pinched or wrapped around anything (Figure C).
4) Remove the Matrix Logo from the console back and throw away (Figure D)

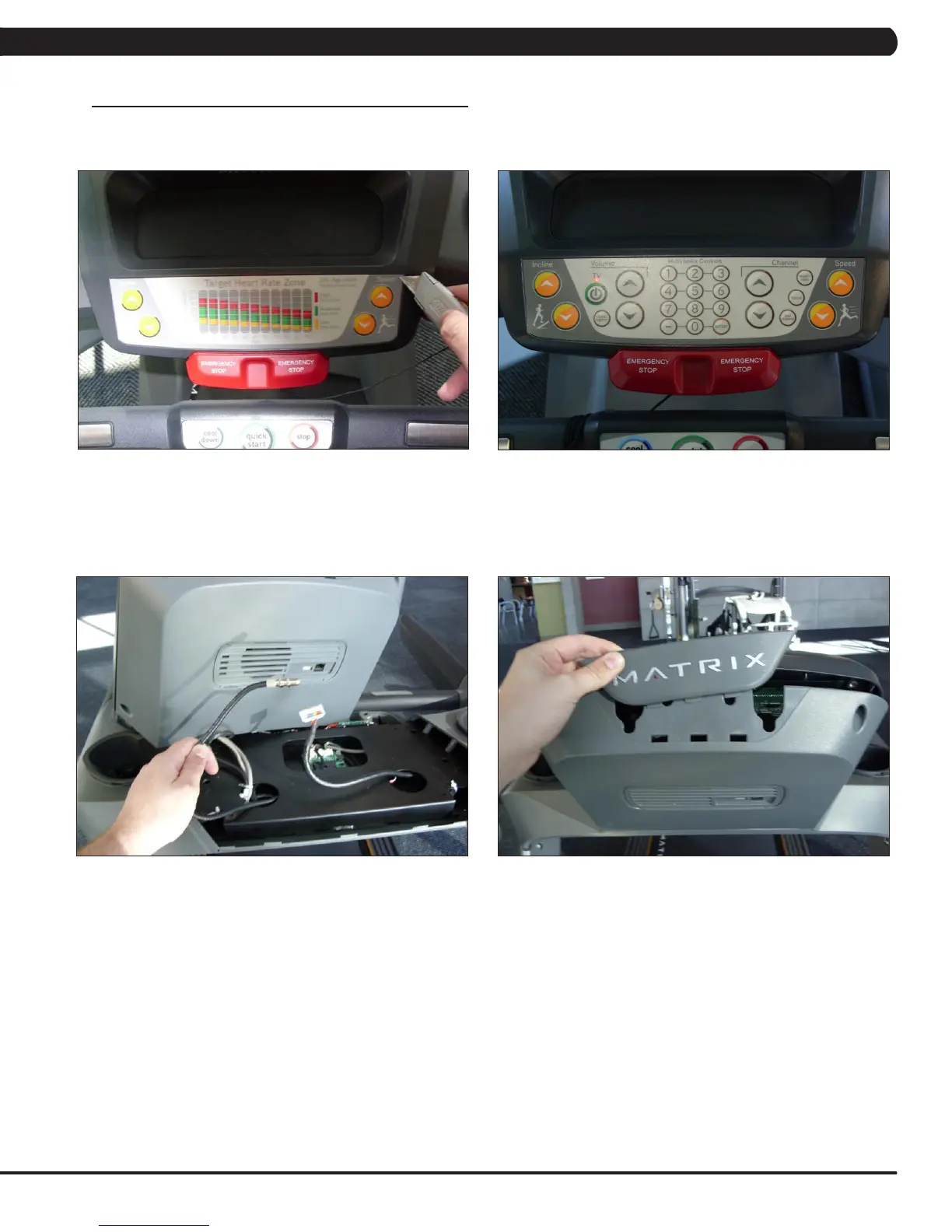

FIGURE A
