Matrix T5X-07 User Manual

30
9.4 DECK CUSHION REPLACEMENT
1) Remove the deck as outlined in Section 9.3.
2) Holding the bolt with a 5 mm Allen wrench, loosen the nut with a 13 mm socket (Figure A & B).
3) For the rear cushion, hold the cushion and remove the 13 mm nut (Figure C).
4) Reverse Steps 1-3 to install new deck cushions.
5) Tension the running belt as outlined in Section 3.5.

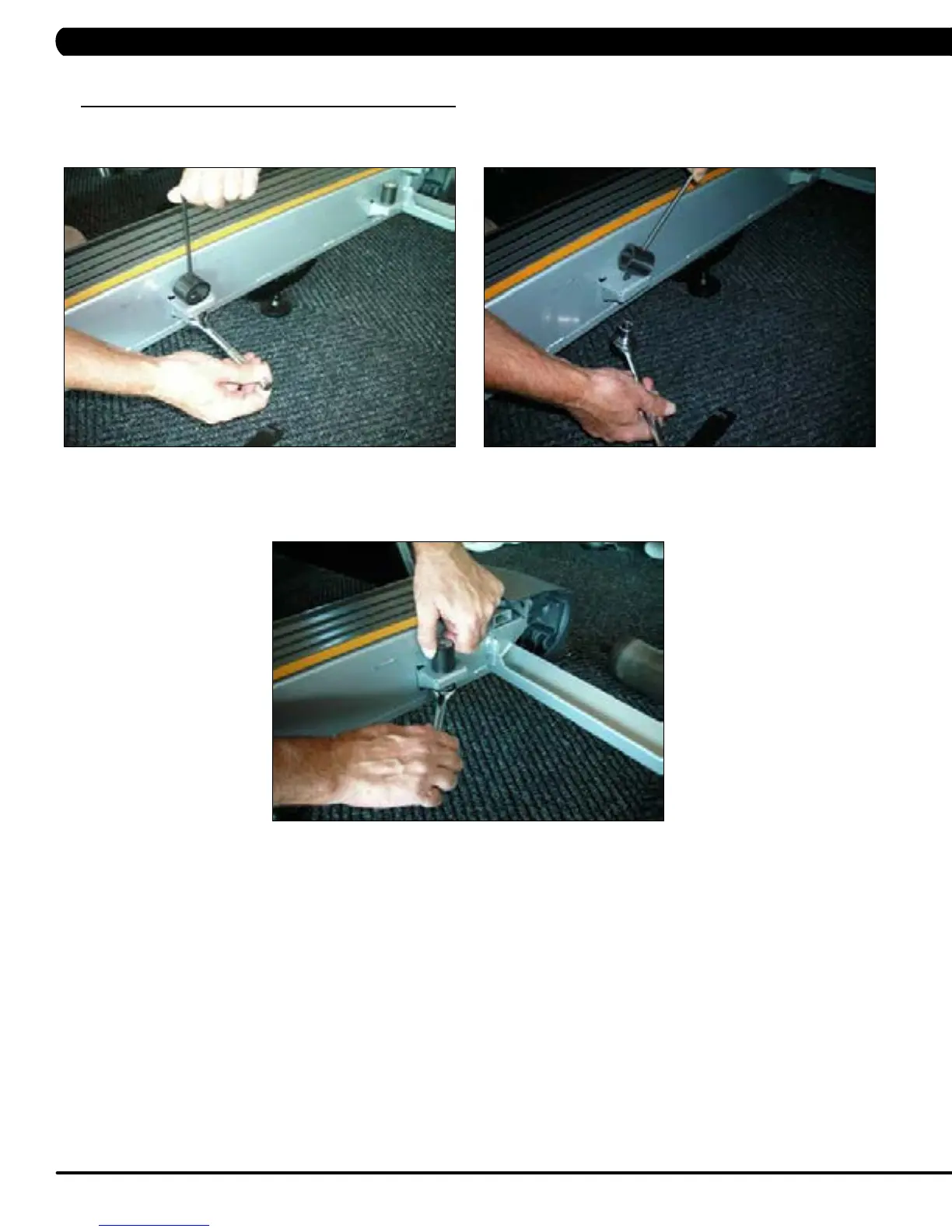

FIGURE A FIGURE B
FIGURE C
