Matrix T5X-07 - 9.14 Console Cable Replacement

39
9.12 CONSOLE REPLACEMENT

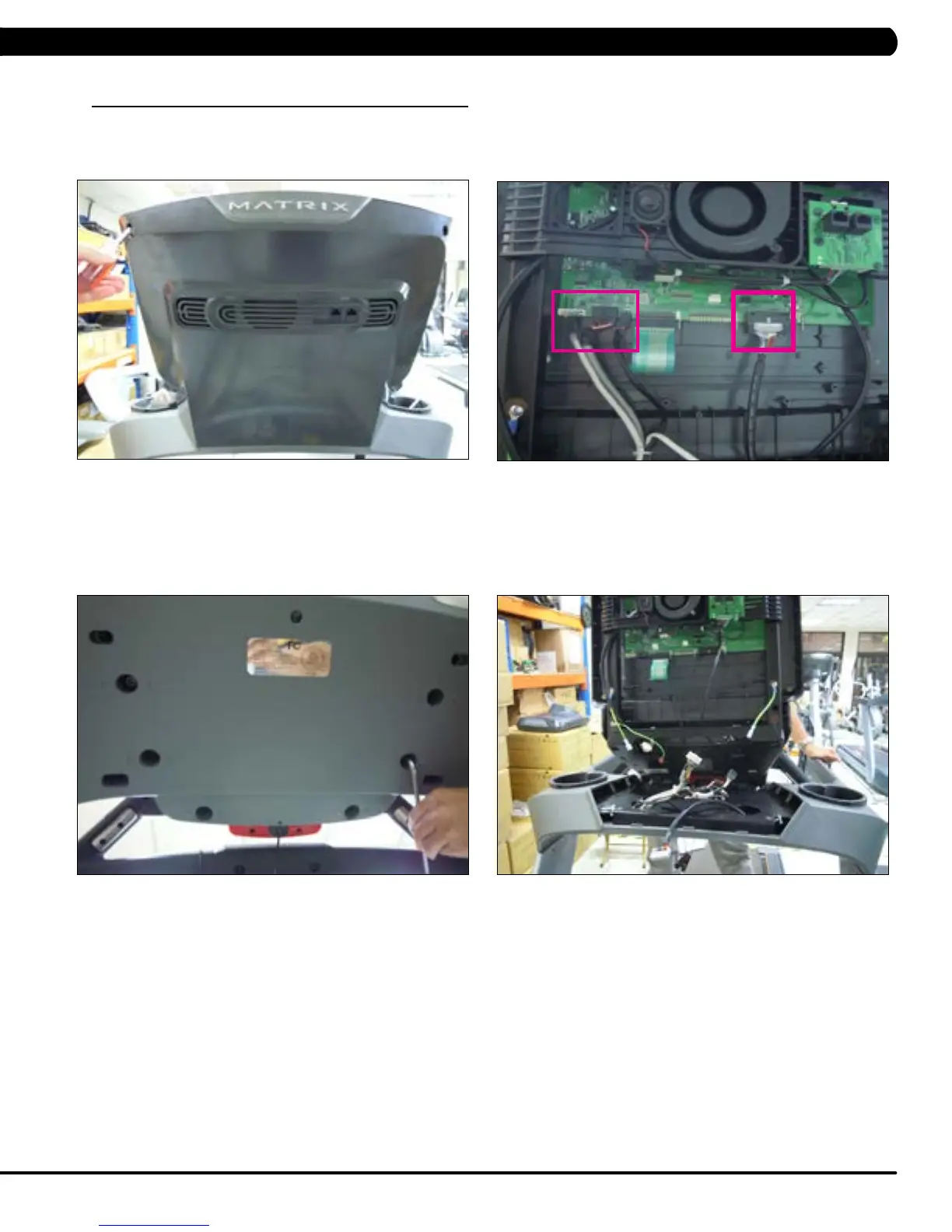

1) Turn off power and disconnect the cord from the machine.
2) Remove the back cover of the console (Figure A).
3) Disconnect the console cable connectors (Figure B).
4) Remove the six 6 mm screws from underneath the console. There are arrows stamped in the plastic at the proper openings (Figure C).
5) Move the console away from the console frame (Figure D).
6) Reverse Steps 1-5 to install a new console.
7) Auto Calibration must ALWAYS be run after replacing the console (see Section 3.4).
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE C FIGURE D
