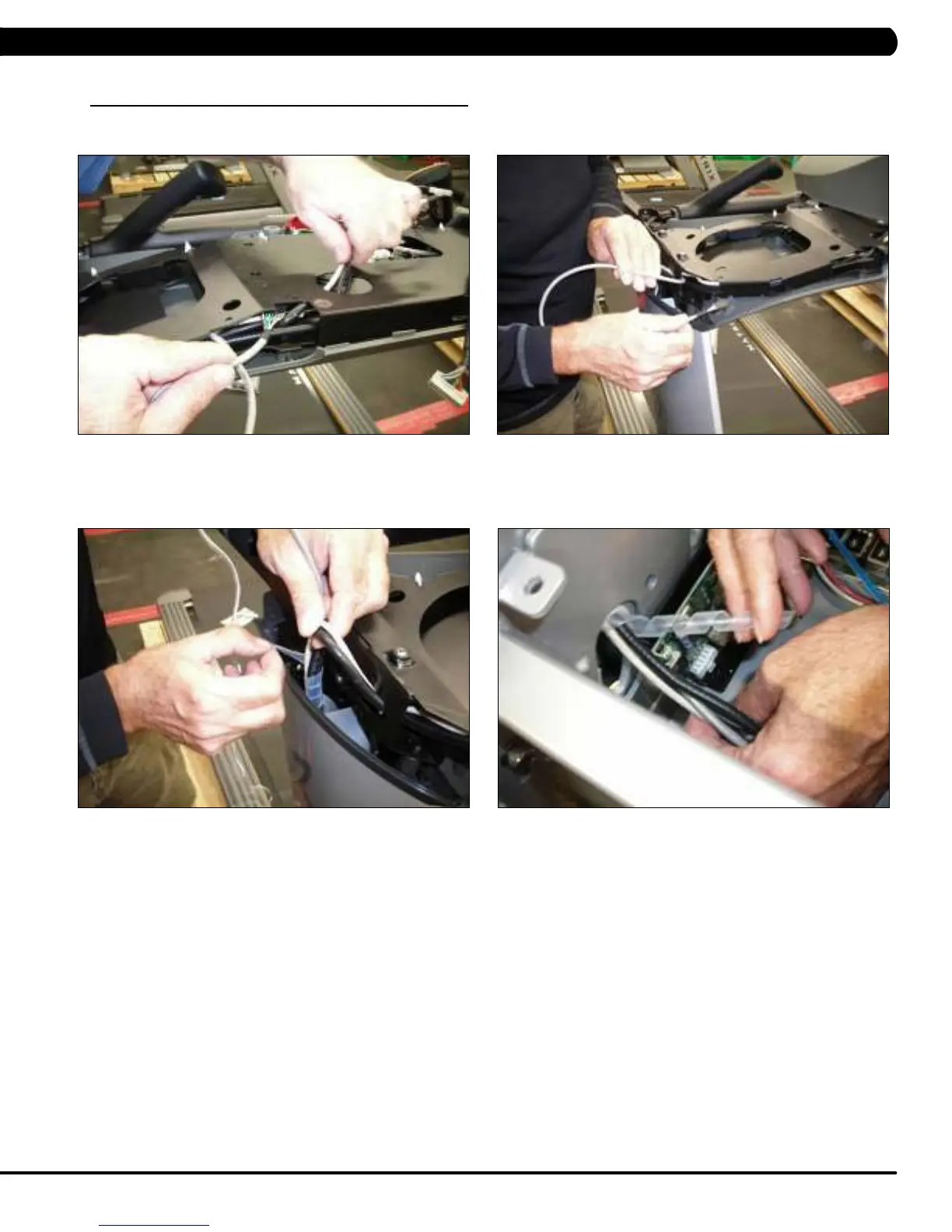

6) Cut the wire ties and begin to un-thread the wire harness (Figures F & G). .
7) Remove the spiral protective wrap from the top and bottom portions of the wire harness (Figures H & I).
FIGURE F FIGURE G
FIGURE H FIGURE I
9.14 CONSOLE CABLE REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
