9.11 INCLINE MOTOR REPLACEMENT
1) Turn off power and disconnect the cord from the machine.

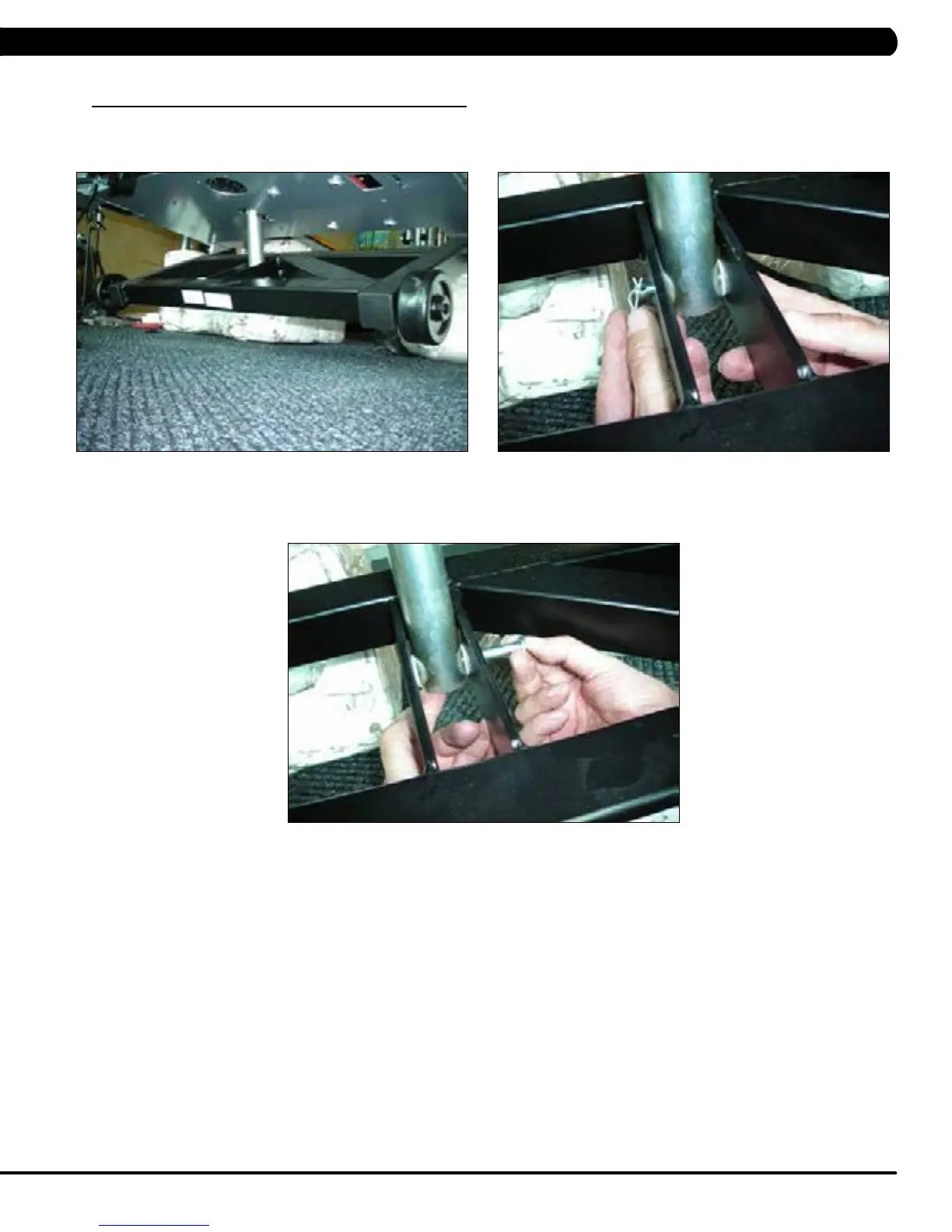

2) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
3) Remove the clip from the pin attaching the incline motor to the rack (Figure B & C).
FIGURE A FIGURE B
FIGURE C
