Matrix T5X-07 User Manual

63
10.6 PCTV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE

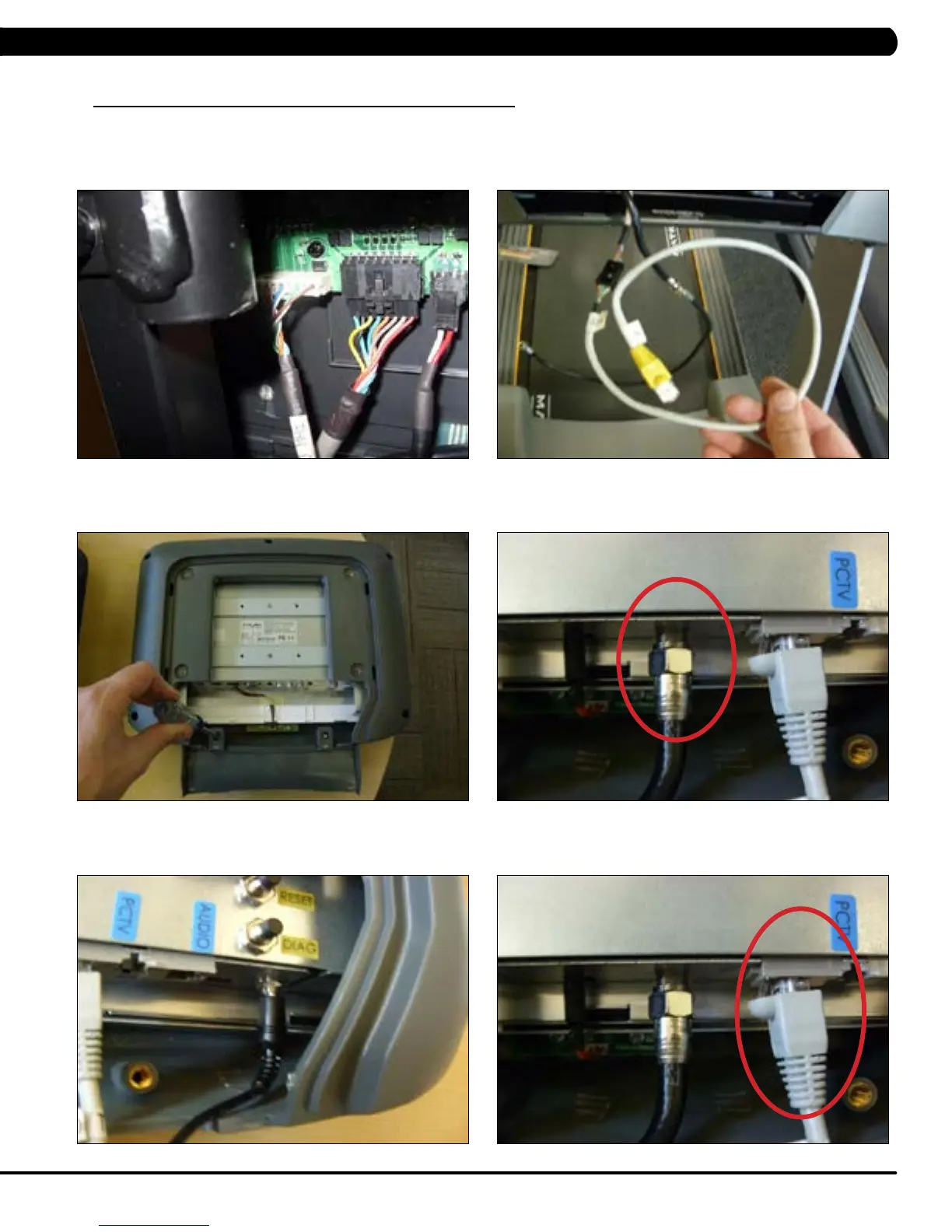

6) Plug the controller wire (this will have a white RJ45 connector on one end) into the bottom left hand corner of the UCB (Figure G). note:
There is a wire in this location that will need to be removed to plug in the controller wire.
7) Plug the net wire (this will have a yellow RJ45 connector on one end) into the net wire coming up the console mast (Figure H). note: The
net wire is only needed if wired internet will be used.
8) Mount the front plate to the MYE TV using 2 screws sent with the TV bracket kit (Figure I).
9) Plug the coax cable into the port on the PCTV (Figure J).
10)PlugtheTVpowerwireintotheportonthePCTV(FigureK).
11) Plug the controller wire into the port marked PCTV on the PCTV (Figure L).
FIGURE G FIGURE H
FIGURE I FIGURE J
FIGURE K FIGURE L
