8.5 ERROR MESSAGE TROUBLESHOOTING - CONTINUED
ERROR MESSAGE 0x04A0
1) CAUSE - The console's communication is lost
2) SOLUTION:
a. Check the connection and condition of the Digital Communication Wire at the daughter board (Figure A).
b. If no signal is present through the Digital Communication Wire, LED 1 on the Daughter Board should be unlit (Figure B).
c. Replace Digital Communication Wire.
d. Replace the Daughter Board.

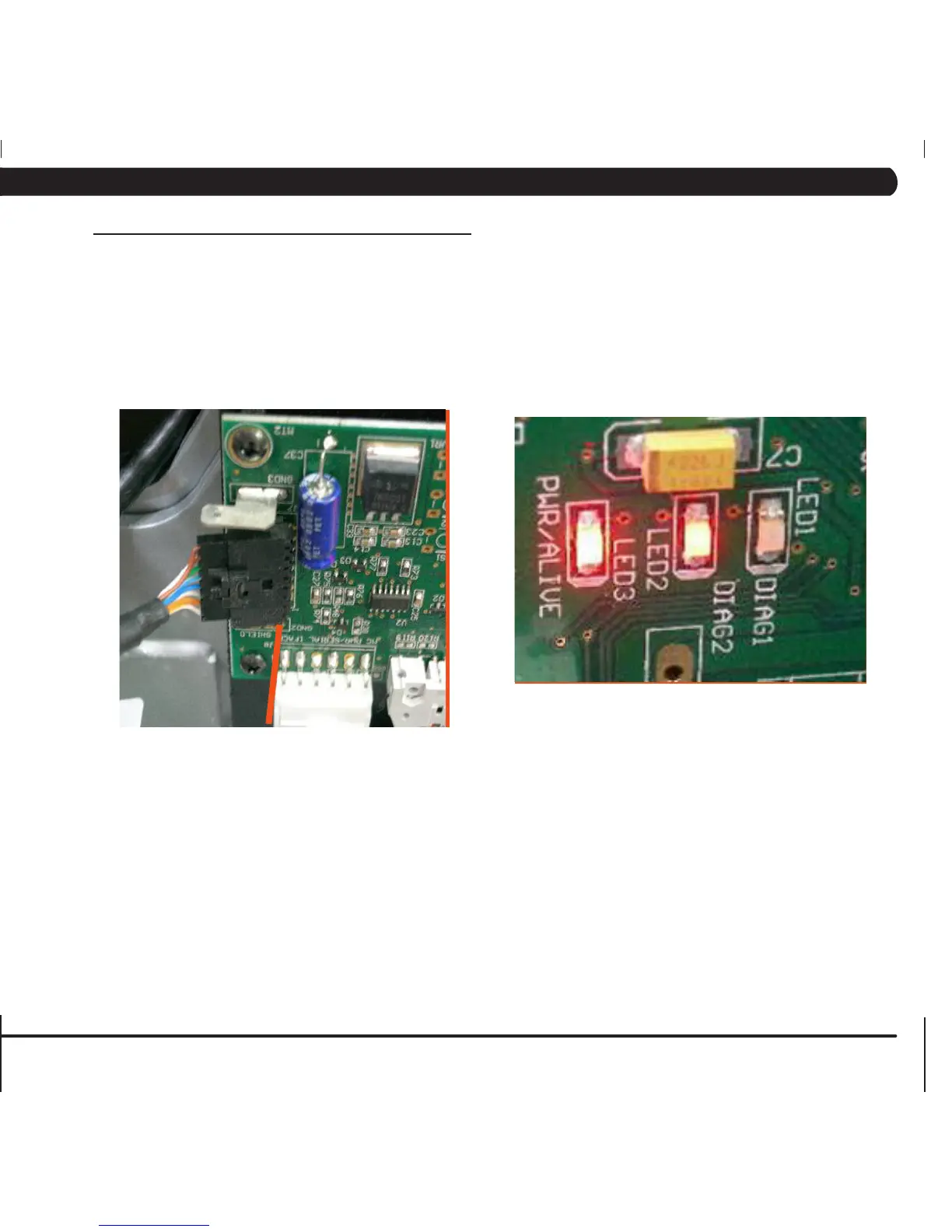

FIGURE A - (LEFT SIDE OF DAUGHTER BOARD).
FIGURE B (TOP / MIDDLE OF DAUGHTER
BOARD).
CHAPTER 8: TROUBLESHOOTING
