8.5 ERROR MESSAGE TROUBLESHOOTING - CONTINUED
ERROR MESSAGE 0x04A1
1) CAUSE - The Motor Control Board's communication is lost.
2) SOLUTION:
a. Check the connection and condition of the MCB signal wire (goes from the Daughter Board to the MCB) (Figure A).
b. If no signal is present through the MCB signal wire, LED 2 on the Daughter Board should be unlit (Figure B).
c. Replace the MCB signal wire.
d. Replace the Daughter Board.

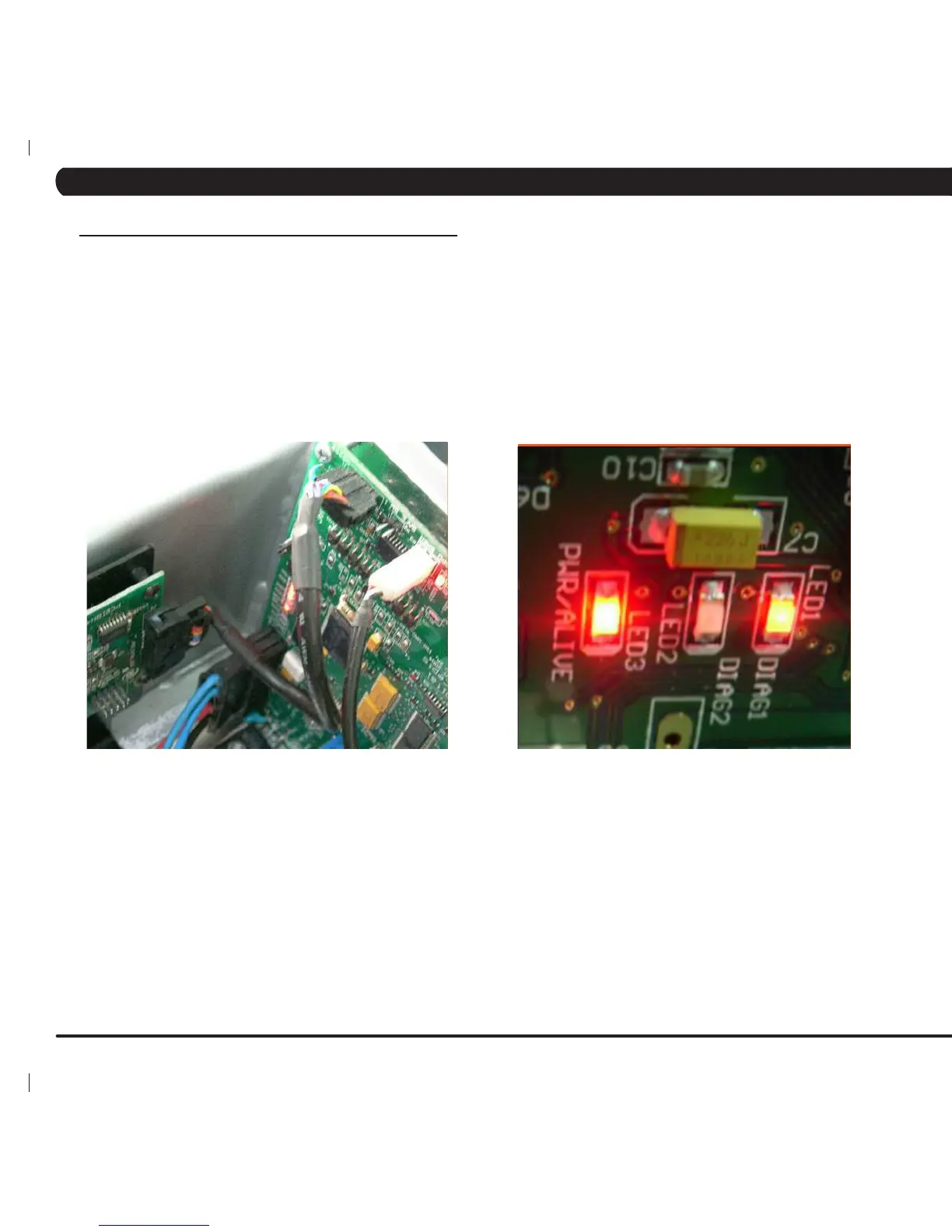

FIGURE A FIGURE B (TOP / MIDDLE OF DAUGHTER
BOARD).
