Electrical specifications 47
Electrical specifications

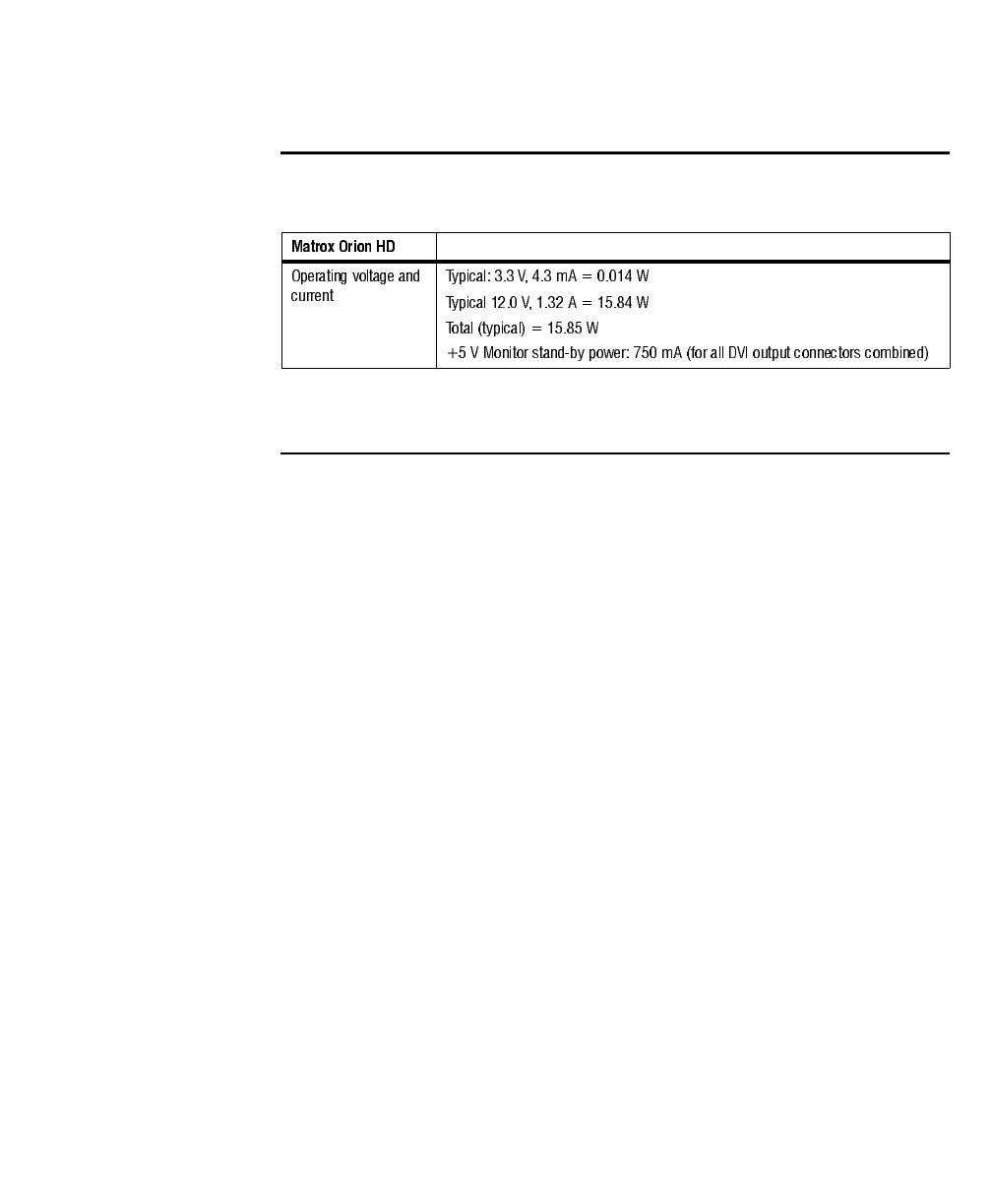

The following table shows the Matrox Orion HD board’s electrical specifications.
Dimensions and environmental
specifications
Matrox Orion HD has the following dimensions and environmental
specifications:
• Dimensions: 167.65 mm x 111.15 mm x 18.0 mm (6.6 in x 4.4 in x 0.7 in)
from bottom edge of goldfinger to top edge of board.
• Minimum/maximum ambient operating temperature: 0 °C to 55 °C
(32°F to 131°F).
• Minimum/maximum storage temperature: -40°C to 75°C (-40°F to 167°F).
• Operating relative humidity: up to 95% relative humidity (non-condensing).
• Storage humidity: up to 95% relative humidity (non-condensing).
• FCC class A pending.
• CE class A pending.
•RoHS compliant.
Matrox Orion HD
Operating voltage and
current
Typical: 3.3 V, 4.3 mA = 0.014 W
Typical 12.0 V, 1. 32 A = 15.8 4 W
Total (typical) = 15.85 W
+5 V Monitor stand-by power: 750 mA (for all DVI output connectors combined)
