Connectors on Matrox Orion HD boards 53
Multi-format input/output connector and the Matrox KX20 to
4 DVI-I cable adapter
The multi-format input/output connector on the Matrox Orion HD board is a
high-density KX20 connector that allows you to acquire images from a video
source and/or display the Windows desktop on a display device. This connector
needs to be connected to the Matrox KX20 to 4 DVI-I cable adapter. The Matrox
KX20 to 4 DVI-I cable adapter is a high-quality fan-out video cable. It has four
DVI-I connectors on one end and a KX20 connector on the other end. Each DVI-I
input connector receives different video streams.

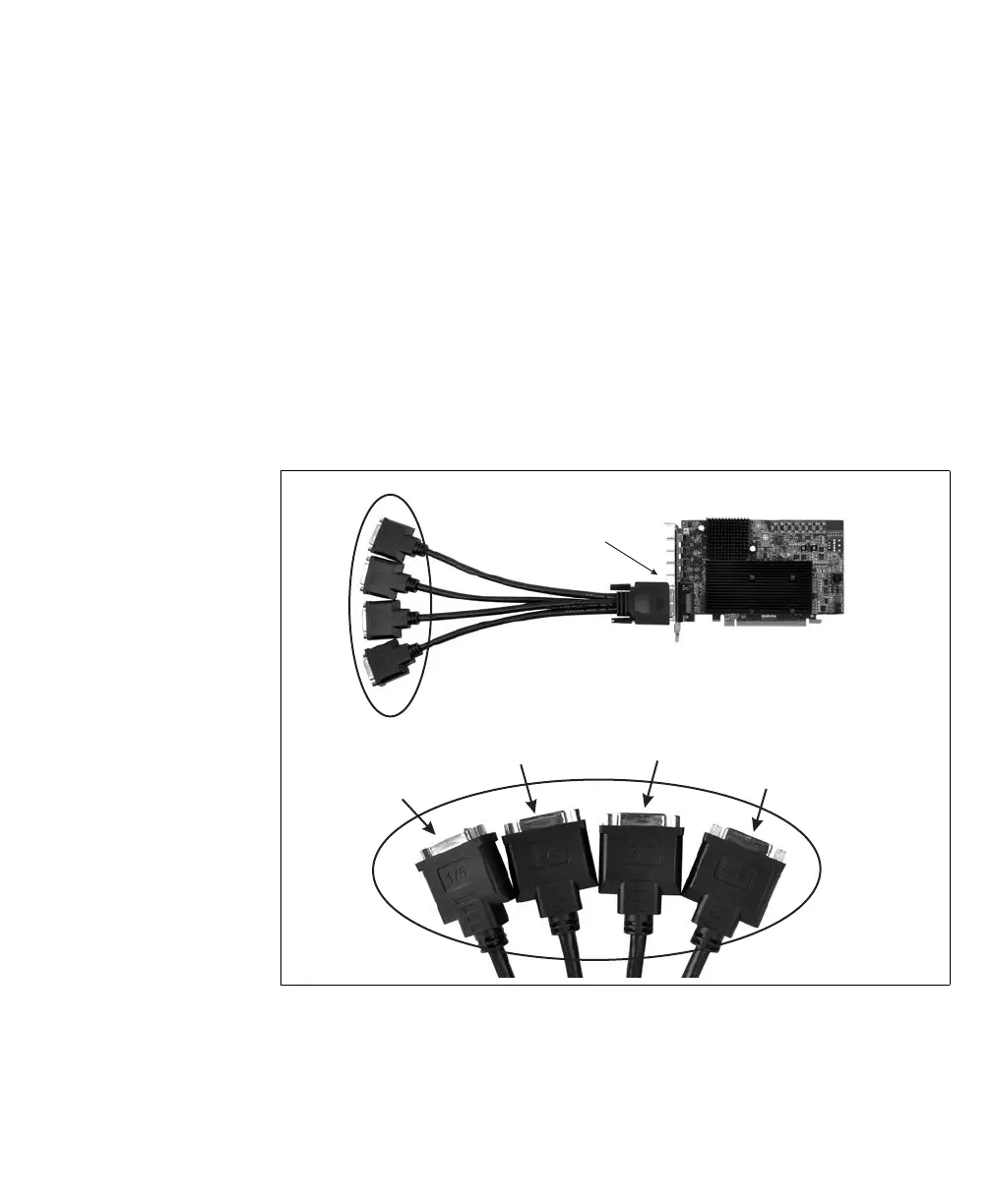

The Matrox KX20 to 4 DVI-I cable adapter connected to the Matrox Orion HD
board and the DVI-I input and output connectors on the Matrox KX20 to
4 DVI-I cable adapter are shown in the following image.
1/5
2/6
3/7
4/8
Multi-format
input/output
connector
DVI-I output
connector 1/5
DVI-I output
connector 2/6
DVI-I input
connector 3/7
DVI-I input
connector 4/8
4/8
3/7
2/6
1/5
