Matrox Orion HD board 9
General acquisition features
Matrox Orion HD has four acquisition paths, but can grab from only two
independently at any one time. Two of the acquisition paths support SD or HD
3G-SDI digital video input using a multi-rate deserializer. The other two
acquisition paths support multiple video input formats using a multi-format video
decoder; they support RGB, YPbPr, Y/C, or CVBS analog video input or DVI-D
digital video input. The table below summarizes the supported aquisition video
formats:
The two acquisition paths that support multiple video input formats also support
video input from display boards (graphics adapters) in standard resolutions. The
table below summarizes the supported standard resolutions:
When grabbing standard definition (SD) video, the multi-format video decoder
converts the video input into RGB888, YUV16, or YCbCr601; when grabbing
high-definition (HD) video, it converts the video input to RGB888, YUV16, or
YCbCr709. The multi-format video decoder includes a programmable color space
converter for converting grabbed images to a different format.

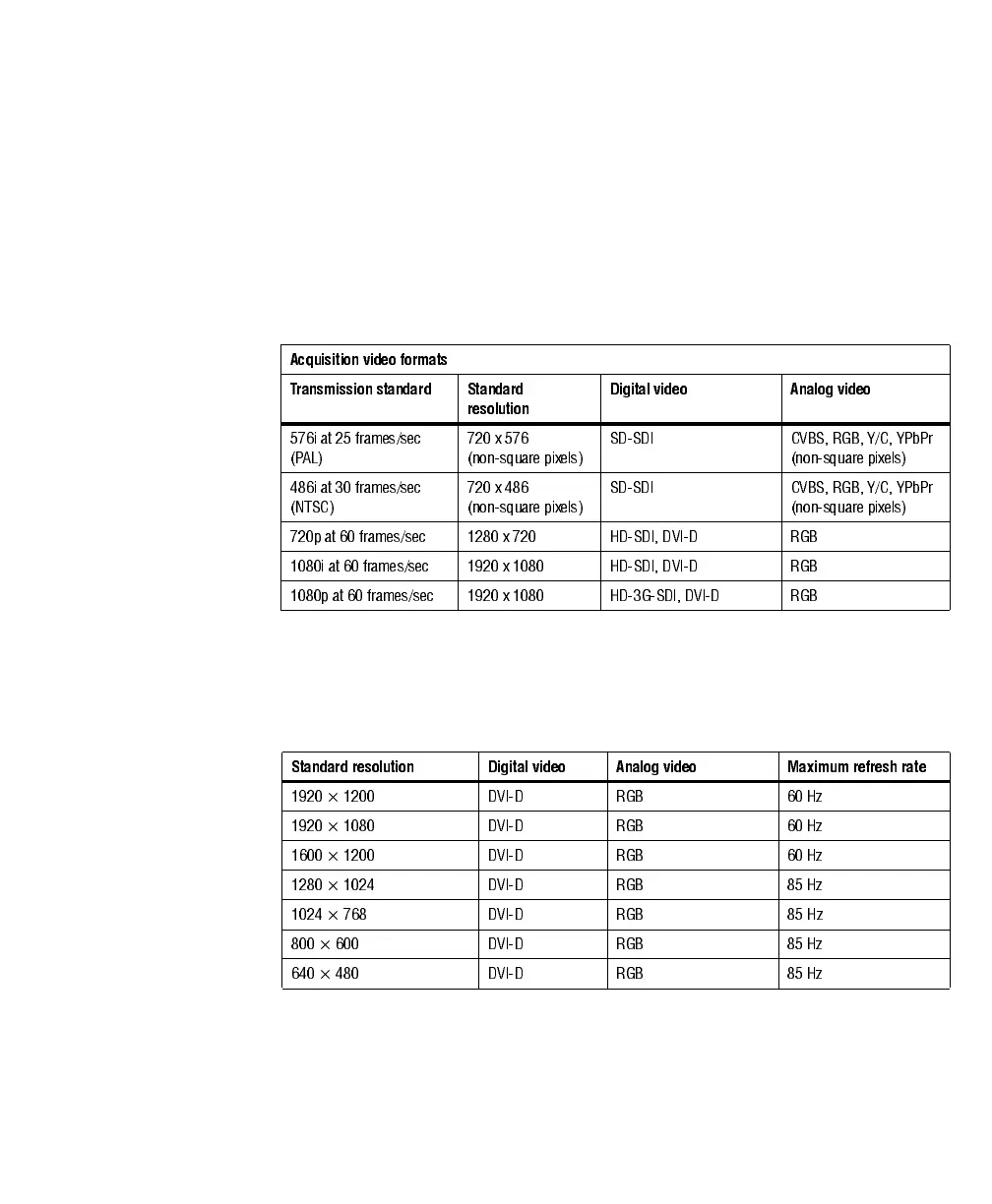

Acquisition video formats
Transmission standard Standard
resolution
Digital video Analog video
576 i at 25 frames/sec
(PAL)
720 x 576
(non-square pixels)
SD-SDI CVBS, RGB, Y/C, YPbPr
(non-square pixel s)
486 i at 30 frames/sec
(NTSC)
720 x 486
(non-square pixels)
SD-SDI CVBS, RGB, Y/C, YPbPr
(non-square pixel s)
720p at 60 frames/sec 1280 x 720 HD-SDI, DVI-D RGB
1080i at 60 frames/sec 1920 x 1080 HD-SDI, DVI-D RGB
1080p at 60 frames/sec 1920 x 1080 HD-3G-SDI, DVI-D RGB
Standard resolution Digital video Analog video Maximum refresh rate
1920 × 1200 DVI-D RGB 60 Hz
1920 × 1080 DVI-D RGB 60 Hz
1600 × 1200 DVI-D RGB 60 Hz
1280 × 1024 DVI-D RGB 85 Hz
1024 × 768 DVI-D RGB 85 Hz
800 × 600 DVI-D RGB 85 Hz
640 × 480 DVI-D RGB 85 Hz
