DIP switches and LEDs on Matrox Orion HD 49

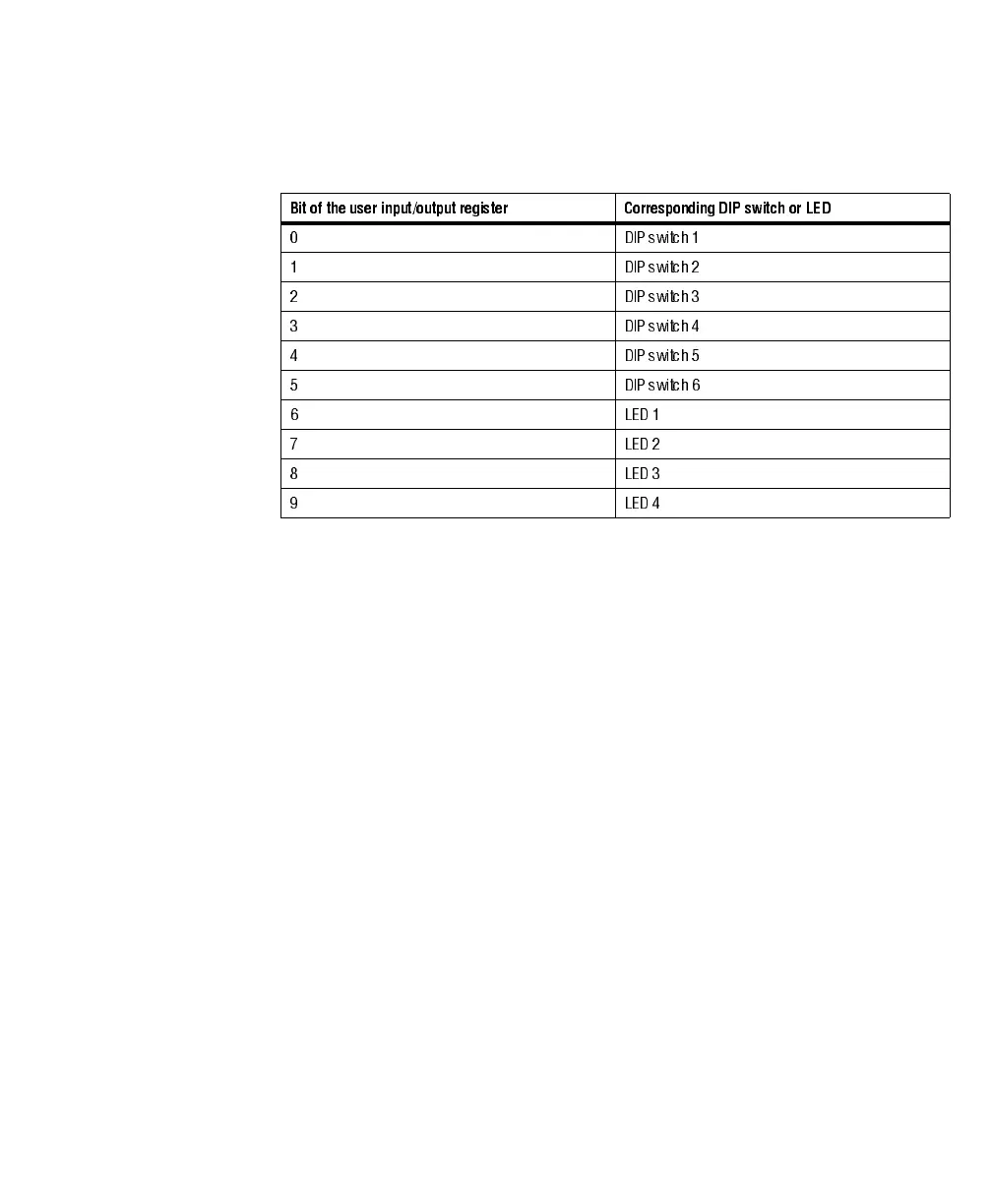

The table below explains which DIP switch or LED corresponds to which bit of
the user input/output register.
Bit of the user input/output register Corresponding DIP switch or LED
0 DIP switch 1
1 DIP switch 2
2 DIP switch 3
3 DIP switch 4
4 DIP switch 5
5 DIP switch 6
6 LED 1
7 LED 2
8 LED 3
9 LED 4
