Chapter 3 Installation
- 19 -
1.The installation of the device

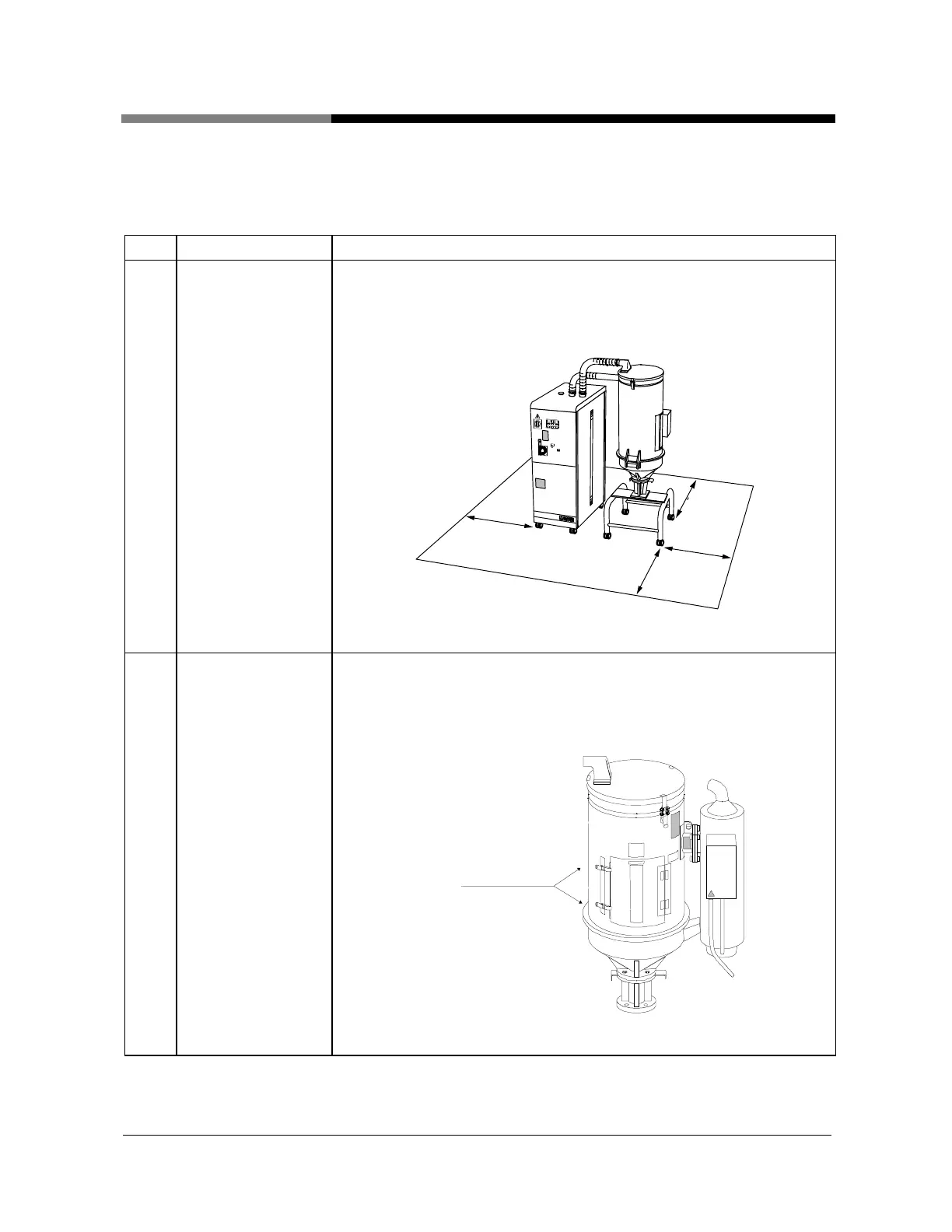

(1)Dehumidifying unit drying funnel integrated stand type (Integrated dehumidifier)
Step
Item Task
１
Installation ·Install on the levelly stable floor.
As shown in figure16, make sure the installation location gives space to
perform maintenance.
600mm
600mm
600mm
600mm
Picture 16
2 The confirmation of
the device state
Shows as picture 17, checking the adjusting fastener(2 piece) on the
cleaning door of the drying hopper cylindrical section and the
knob(1piece) are in whole set.
(Only for HD-75～300)
Picture 17
