Matsui DMS2-80 - Chapter 4 Preparation for Operation; Inspecting Inside of the Hopper

Chapter 4 Preparation for Operation
- 34 -
1. Inspection Inside Drying Hopper
(1)HD-10～50type
Step Task

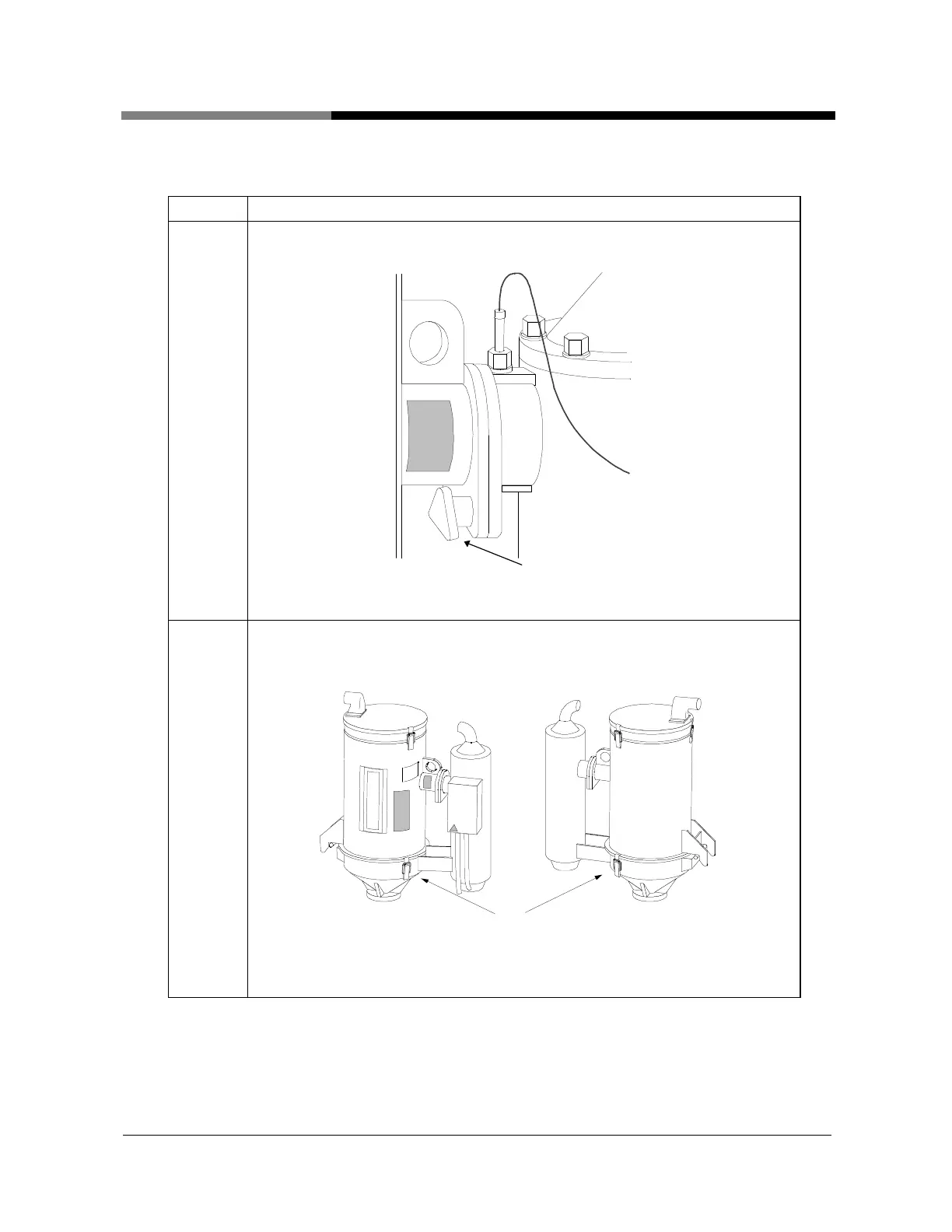

1 As picture 36 shows, be sure that dismantle the U-type bolt which connects the
cylindrical section and hot air pipe.
U type bolt
HD
－
10
～
50
Picture 36
2 As picture 37 shows, be sure that dismantle the catchclips (2 pieces) fastening
drying hopper cylindrical section and base.
catchclips
Picture 37
