(3) The common items of the integrated stand type and the separable type.
Step Item Task
9 Connecting
water supply
and drain
hoses or pipes
to
dehumidifying
unit

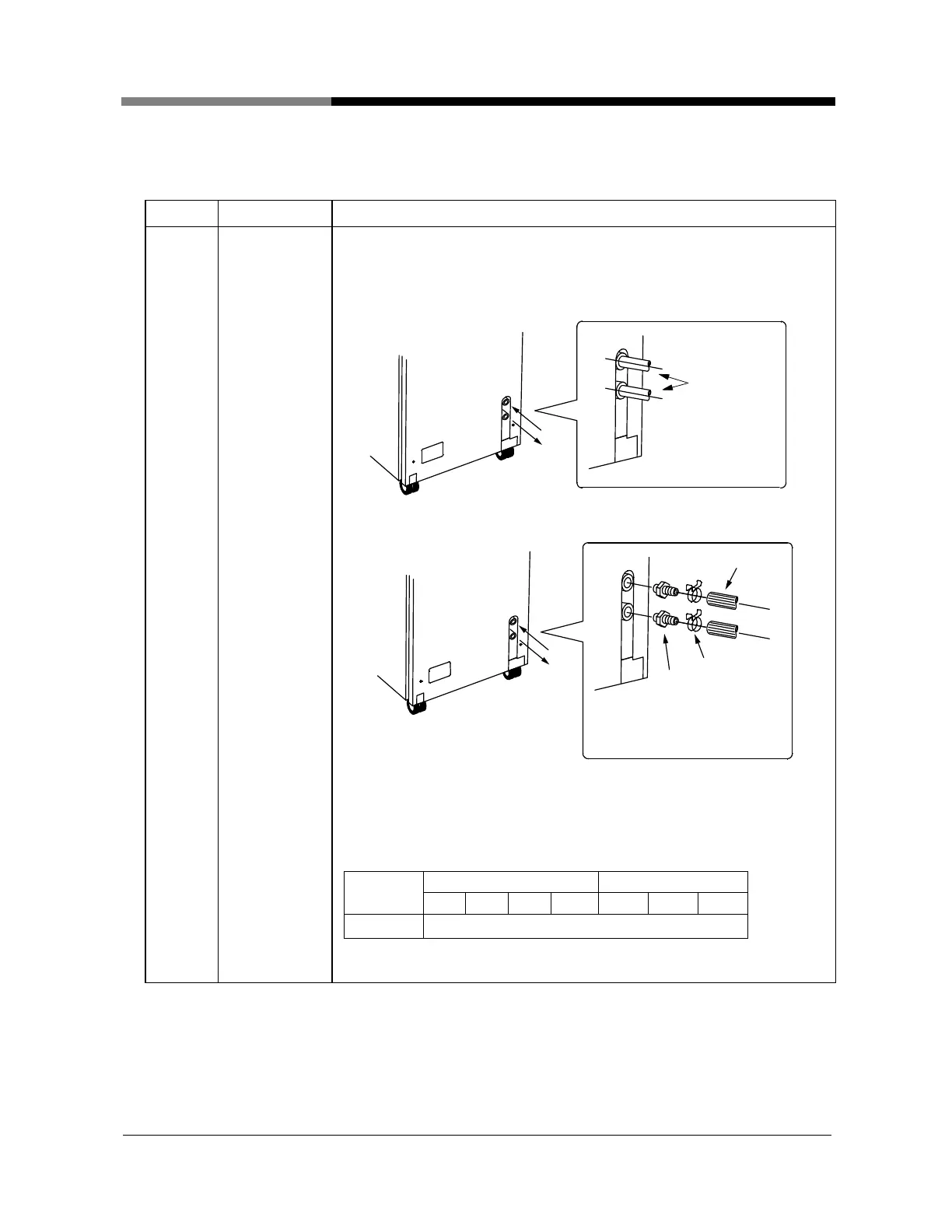

Connect pipe or hose to water supply and drain ports of dehumidifying
unit as shown in Figure.
＜In case of connecting pipe＞
Pipe
Fasten pipes securely
with seal tape to
prevent water leak.
＜In case of connecting hose＞
Tighten connection securely
with hose clamp(Jubilee
band) to prevent water leak.
Picture 34
Hose, hose clamp and hose nipple are sold separately from main ※
body.
Connecting diameter :
DMS2 DMZ2
Type
80
120
170
240
40 80 120
Diameter
3/8B
