Chapter 3 Installation
- 30 -
Step
Item Task
8
Connecting the hose
for connecting
dehumidifying unit
and drying hopper

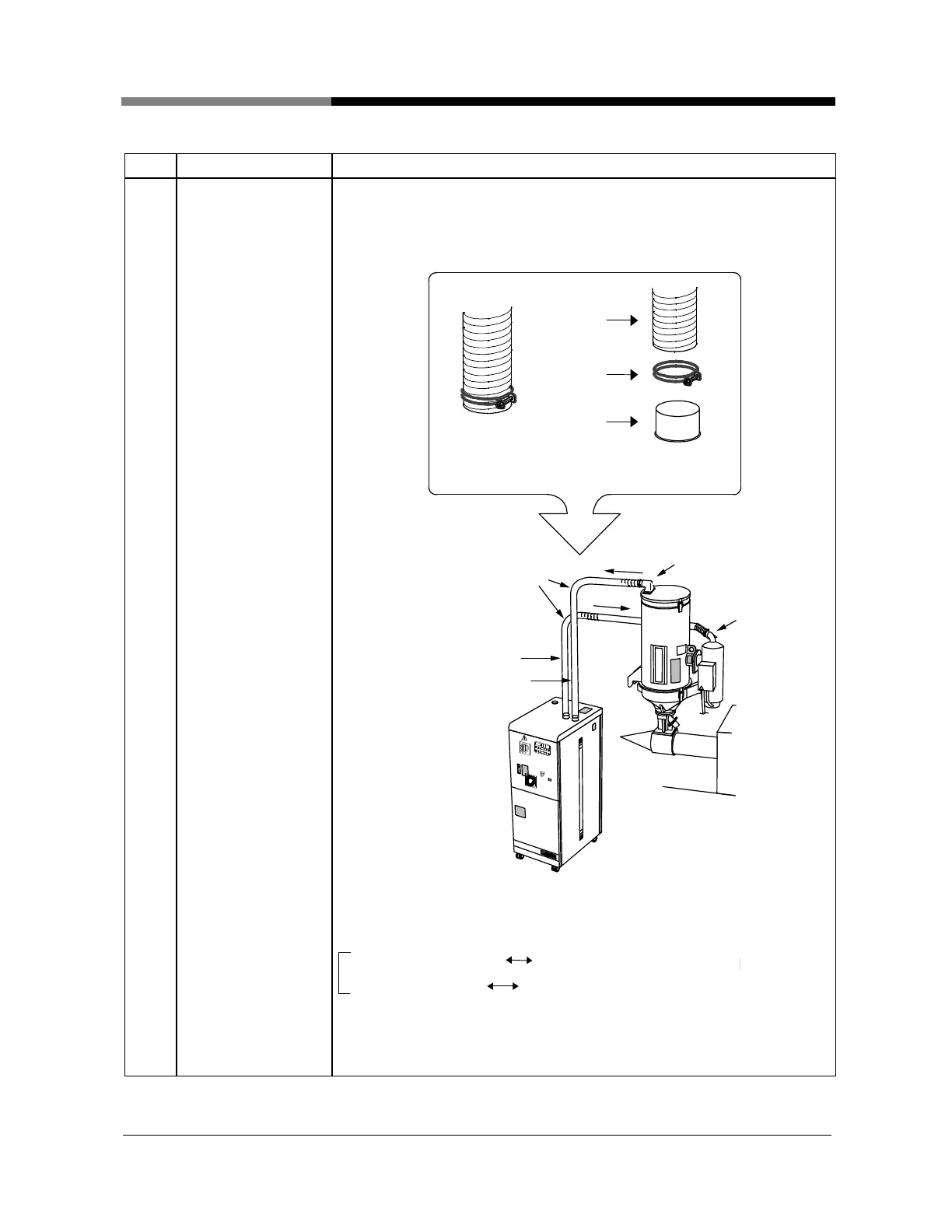

In case of circulation specifications, connec※ t dehumidifying unit and
drying hopper with connecting hose (heat resisting hose) as shown in
Figure.
Heat resistant
hose
Hose clamp
Connection
port
Connection should be tightened with
hose clamp securely to prevent air leak.
Exhaust pipe
Suction pipe
Dehumidified air OUT
Picture 33
Connecting method※
Dehumidified air OUT Suction pipe at heater box top
Dehumidified air IN
Exhaust pipe at lid
【Caution！】Position of IN and OUT sides of dry air hose is different
depending on machine types. Confirm the label on the
body side to connect hose correctly.
To Next Page
